The BW Clip is a 2-year, disposable monitor. This particular model is suitable for detecing levels of hydrogen sulphide (H2S) and is maintenance-free. Other gases are available. The display will show the countdown of the detector’s lifetime in months.

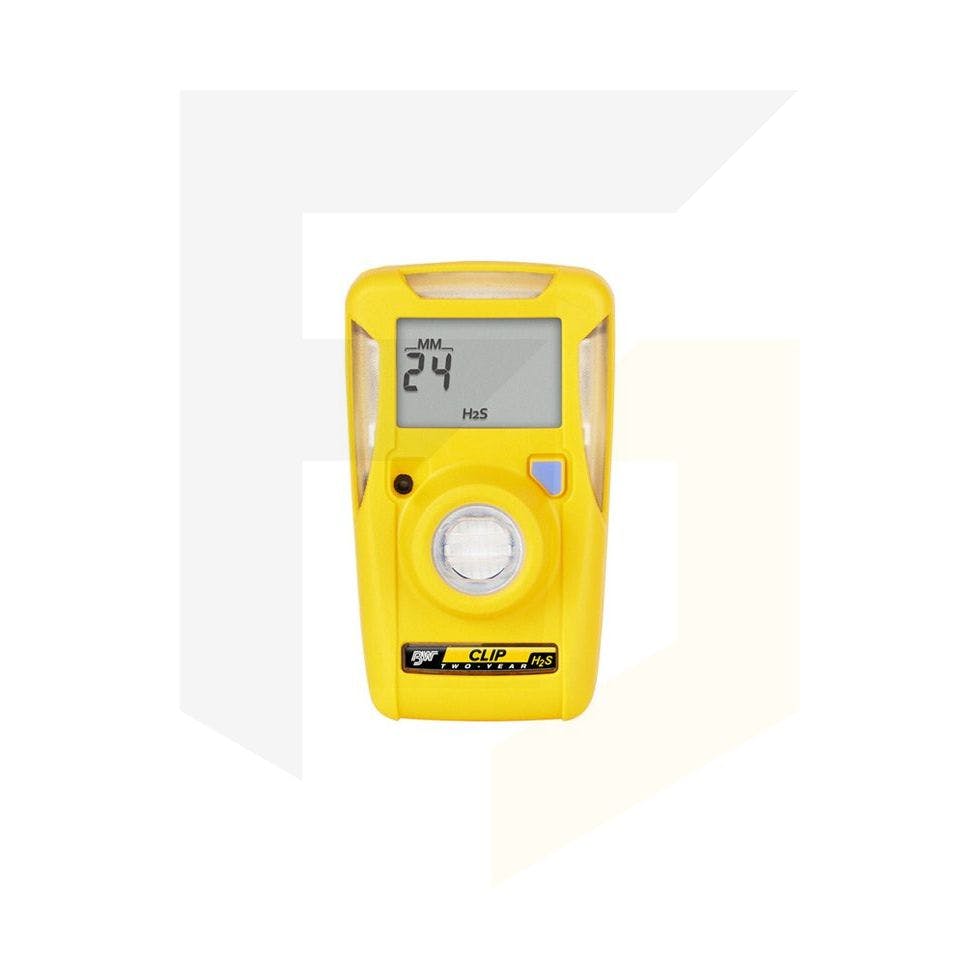

BW Clip (2 Year) Hydrogen Sulphide (H2S) 5/10 ppm Gas Detector
This particular version of the BW Clip from BW Technologies is a single gas detector designed for monitoring Hydrogen Sulphide (H2S). It has alarm set points of 5/10 ppm and comes with a 2 year warranty (from activation).
The display of the Clip will show the countdown of the detector’s lifetime in months, it does not show a ppm reading. If you require a ppm reading then please view the BW Clip RT monitor.

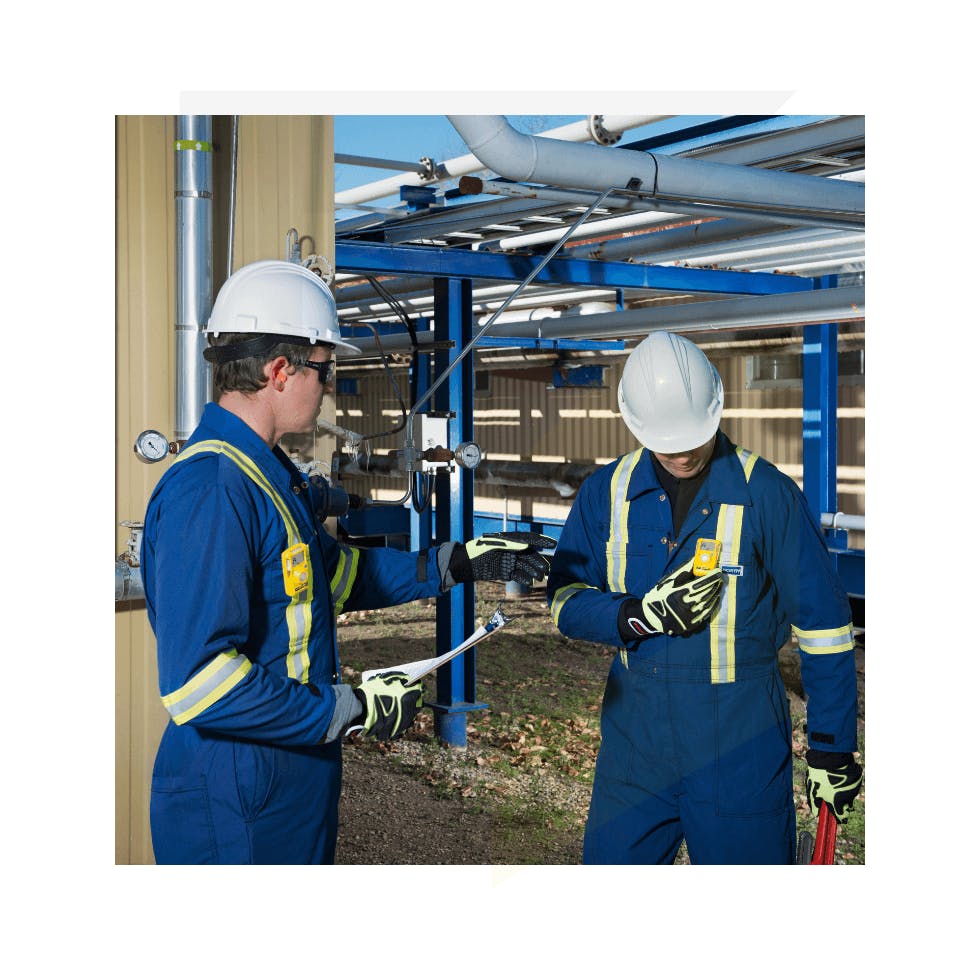

Use this BW gas detector in hazardous situations and industrial applications to assist you with your safety and compliance. It’s an extremely robust H2S gas detector with a concussion-proof, water-resistant housing. It comes in a brightly visible yellow colour, which is ideal for low-light conditions.

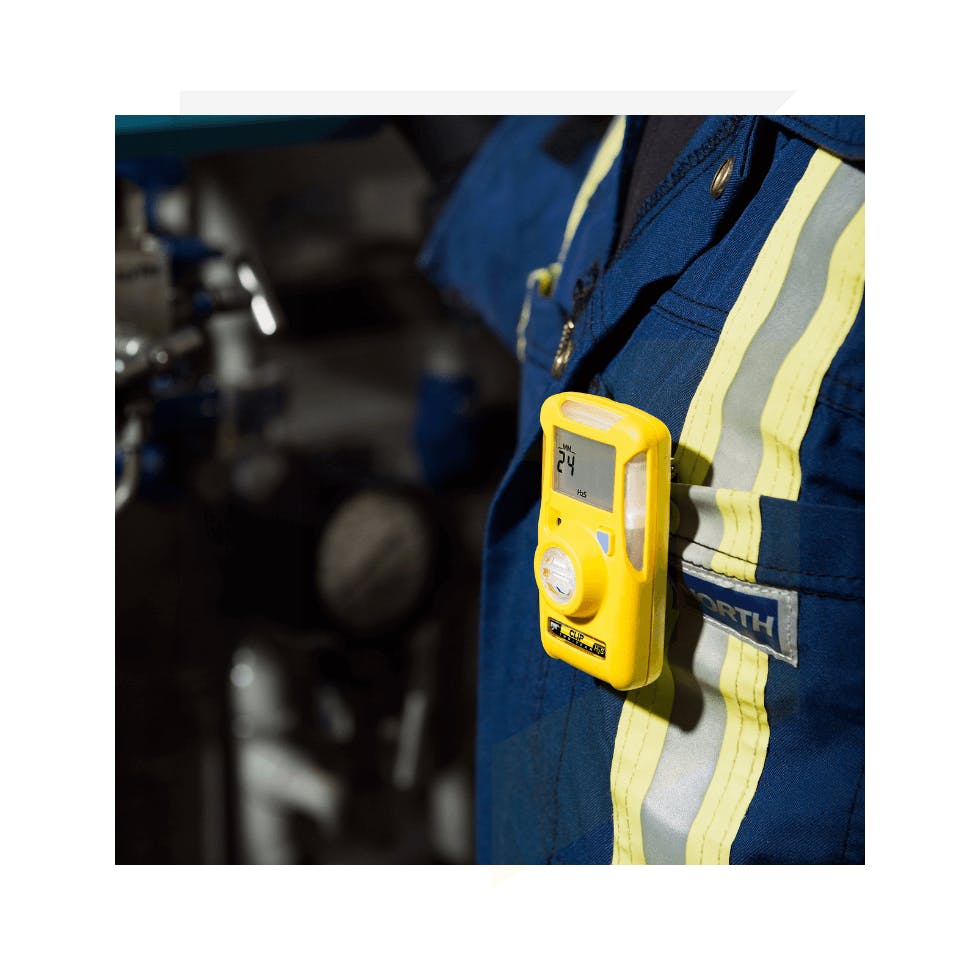

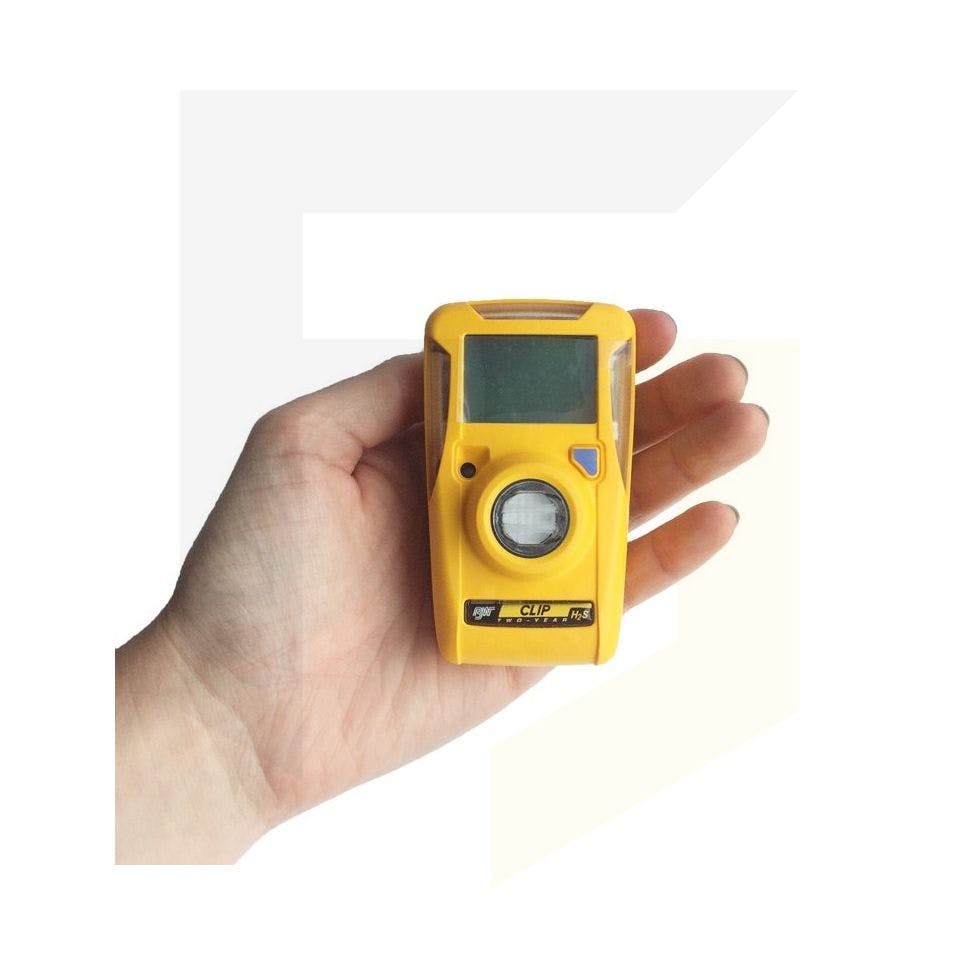

Despite being a robust instrument the BW Clip is extremely light in weight and is compact, ensuring it can be easily worn on clothing and won’t interfere with your daily work duties.
The BW Clip has many additional advantages. There’s no need for calibration during its 2 year lifetime, as well as no need for a battery or sensor change or battery charging. It will run continuously with no downtime and also log 35 of the most recent gas events and bump test results. This ensures there’s always a record of the main events during its use.
Check out our website to view the BW Clip for Oxygen (O2), the BW Clip for Carbon Monoxide (CO) and the BW Clip for Sulphur Dioxide.
Key Features
Colour-coded label on front indicates gas type
BW hibernation case will increase the lifetime of the detector
Use with the Intellidox bump test stations
Improved performance with Surecell Technology
Self-test function is automatic and will check the operation of the monitor
One-button operation makes the BW Clip easy to use
Alarm set points and bump test reminders are configurable
Dimensions
Measuring Range
0-100 ppm
Temperature
-40 to +122°F / -40 to +50°C
Humidity
5% – 95% RH (non-condensing)
Alarms
Visual, Audible (95dB), Vibrating – low and high
Tests
One internal diagnostic test every 24 hrs (activated detectors)
Typical Battery Life
2 years
Ingress Protection
IP 66/67
Certifications & Approvals
CUL US
ATEX
IECEx:
CE
Warranty
Two years from activation (3 years if hibernation feature is used) plus one year shelf life

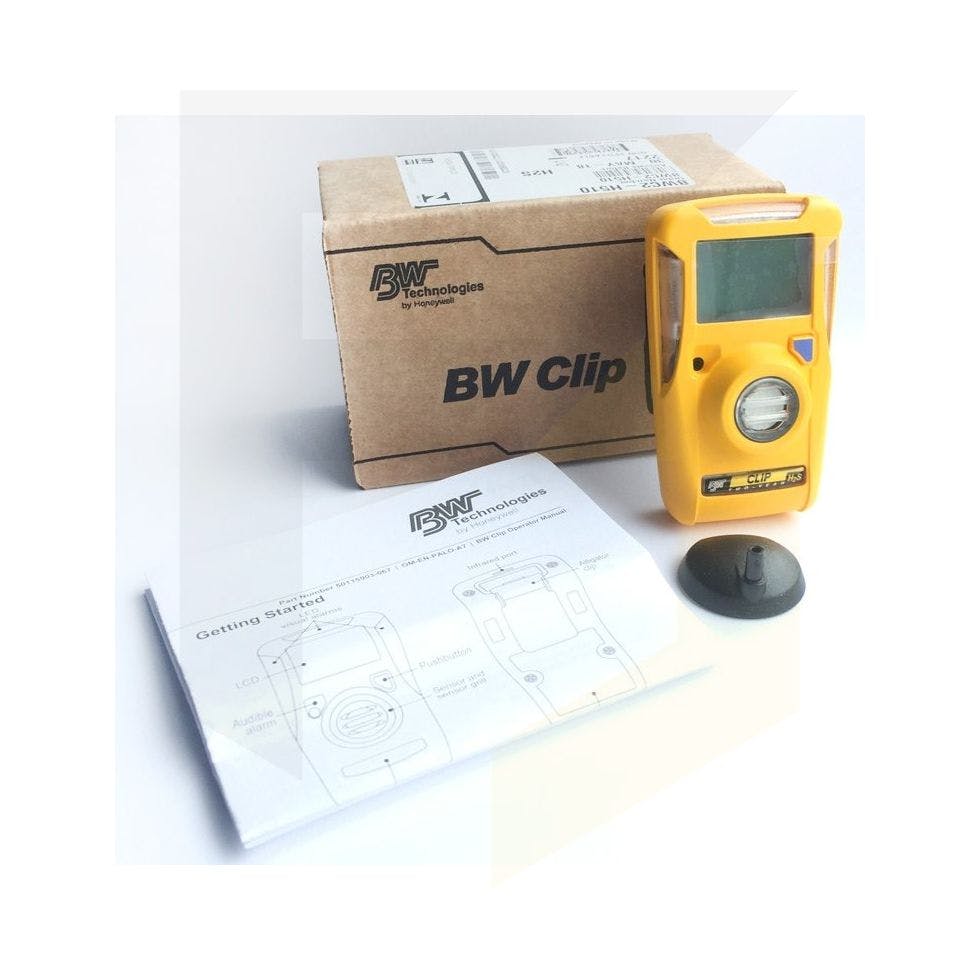

What’s Included?
