BW Clip Real Time (RT) 2-Year Disposable Gas Detector

BW Clip Real Time (RT) 2-Year Disposable Gas Detector
The BW Real Time (RT) Clip is a disposable single gas detector which is capable of detecting one of four gases.  The gas monitor is available with sensors to detect either oxygen (O2), carbon monoxide (CO), Hydrogen Sulphide (H2S) and Sulphur Dioxide (SO2).

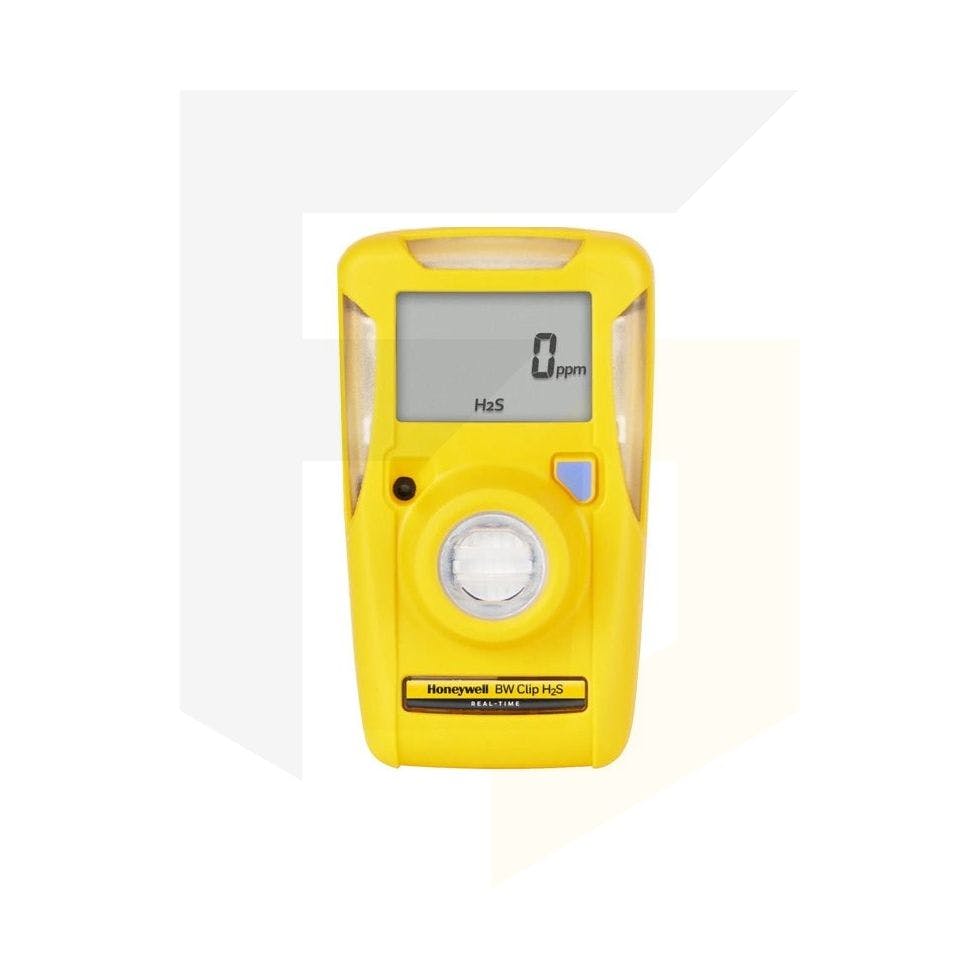

Please note: the product image is for illustration purposes only, other gases are available.
The ‘real time’ aspect of the BW Clip means that it will continuously display a real-time concentration of your chosen gas in the ambient air.  When the gas exceeds alarm set points then the triple alarm system will be activated.  This consists of a visual alarm, a vibrating alarm and an audible alarm.
The BW Clip is a disposable, 2-year or 3-year monitor, which means after this time period has ended the monitor must be replaced.  However, the manufacturer describes this as being virtually maintenance-free and as easy as switching on the device once ready to monitor gas.  There should be no requirement to replace the sensor or battery or charge the unit.  Once switched on the BW Clip RT will begin its lifetime countdown. Unlike the standard BW Clip, the Real Time version can be calibrated but only when purchased with and configured with an IntelliDoX station.  Otherwise, it comes with this feature disabled as standard.

Key Features

Compatible with the IntelliDoX or MicroDock II stations
2-year CO and H2S versions can be used with a hibernation case to extend the lifetime by a set period of time
Lightweight and compact
Can be used in tough environments and extreme temperatures
Uses Surecell sensor technology which improves response time and performance
Performs a self-test function to increase worker confidence every 24 hours
Event logging shows most recent events (requires use of IntelliDoX/MicroDock II)

Measuring Range

• O2 – 0-25% by Vol.
• H2S – 0-100ppm
• CO – 0-300ppm
• SO2 – 0-100ppm

Alarm Levels

• O2 – Low 19.5% / High 23.5%
• H2S – Low 5ppm / High 10ppm
• CO – Low 20ppm / 100ppm
• SO2 – Low 5ppm / High 10ppm

Size

1.6 x 2.0 x 3.4 in. / 4.1 x 5.0 x 8.7 cm

Weight

3.2 oz. / 92 g

Temperature

• H2S: -40 to +122°F /-40 to +50°C
• CO: -22 to +122°F /-30 to +50°C
• O2: -4 to +122°F /-20 to +50°C
• SO2: -22 to +122°F /-30 to +50°C

Humidity

5% – 95% RH (non-condensing)

Alarms

• Visual
• Vibrating
• Audible (95dB)
• Low/High

Battery Life

Two-Years – O2, H2S, CO, SO2

Ingress-Protection

IP 66/67

Certifications and Approvals

• ClassI, Div. 1, Gr. A, B, C, D.
• ClassI, Zone 0 , Gr. IIC
• ATEX: II 1G Exia IIC T4 Ga
• IECEx: Exia IIC T4 Ga
• European Conformity
• American Bureau of Shipping
• CU TR Ex(Customs Union)

Warranty

Two years from activation (given normal operation), plus one-year shelf life (6months for O2). Up to three years for two-year H2S and CO detectors when used with the hibernation feature, limited to 24months of detector operation.
