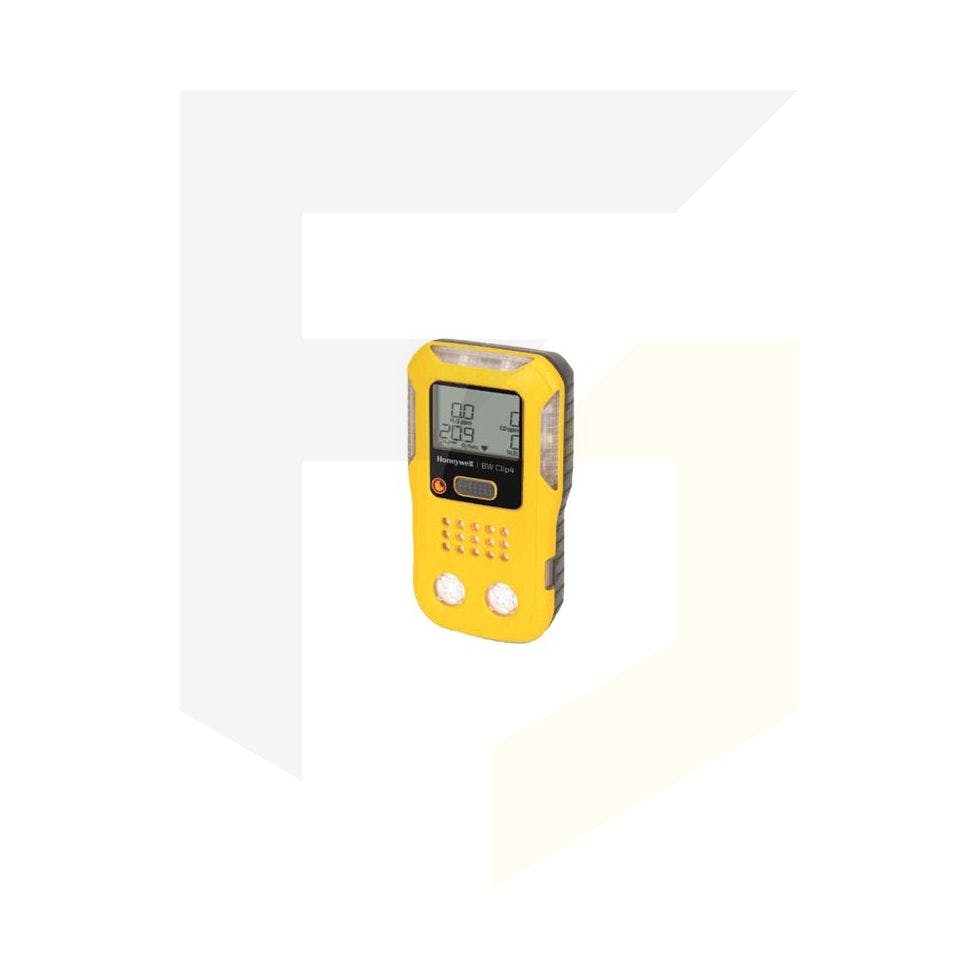

BW Clip4 Multi Gas Detector (LEL/O2/CO/H2S)

BW Clip4 Multi Gas Detector (LEL/O2/CO/H2S)
BW Technologies’ latest gas detector is the BW Clip4.  This is a disposable multi-gas detector which detects levels of LEL, oxygen, carbon monoxide and hydrogen sulphide.
Once activated, the detector will always be on for its 2-year lifetime.  There’s no need to charge this unit.
The Clip4 is a robust monitor with a built-in concussion proof boot and is IP68 rated.  It also comes with a flashing red non-compliance indicator.  This will warn users that the multi gas detector has not been bump tested in accordance to its schedule.
There’s no need to replace the sensors, unless an issue arises. Calibration is recommended by the manufacturer every 6 months. This is to ensure that the sensors are always compliant and working, given that they are providing you with real-time readings

Key Features

Lightweight and durable
Easy to use, one-button operation
Shows real-time gas concentrations on LCD screen
Carries out a self-test every 24 hours on the sensors, battery status, circuit integrity and the alarms
Can be used alongside the IntelliDoX docking system
Logs the 70 most recent events
User has the ability to set STEL period, calibration span levels, date and intervals, bump test intervals, select combustible gas measurements, enable and disable individual sensors and enter stealth mode

Measuring   Range

LEL – 0-100%

H2S – 0-100 ppm

O2 – 0-25% Vol

CO – 0 – 1000ppm

Resolution

LEL – 1% LEL

H2S – 1 / 0.1 ppm

O2 – 0.1% vol

CO – 1 ppm

Size

12.0 x 6.8 x 3.2 cm / 4.7 x 2.7 x 1.3 in.

Weight

233g / 8.2 oz

Operating   Temperature

-20 to +50°C / -4 to +131°F

Humidity

5 – 95% RH (non‑condensing) continuous

Alarms

Visual, vibrating, audible (95 dB); low, high, TWA,   STEL, OL (over limit)

Typical   battery life

2 years, continuous operation

Certifications   and Approvals

Class I, Div 1, Group A, B, C, D

Class I, Zone 0, Group IIC

ATEX: II 1G Ex ia IIC T4 Ga

IECEx: Ex ia IIC T4 Ga

CE: Conforms to all applicable European directives.

Warranty

2 years, including sensors and battery
