Drager 5820 Alcotest Kit

Drager 5820 Alcotest Kit

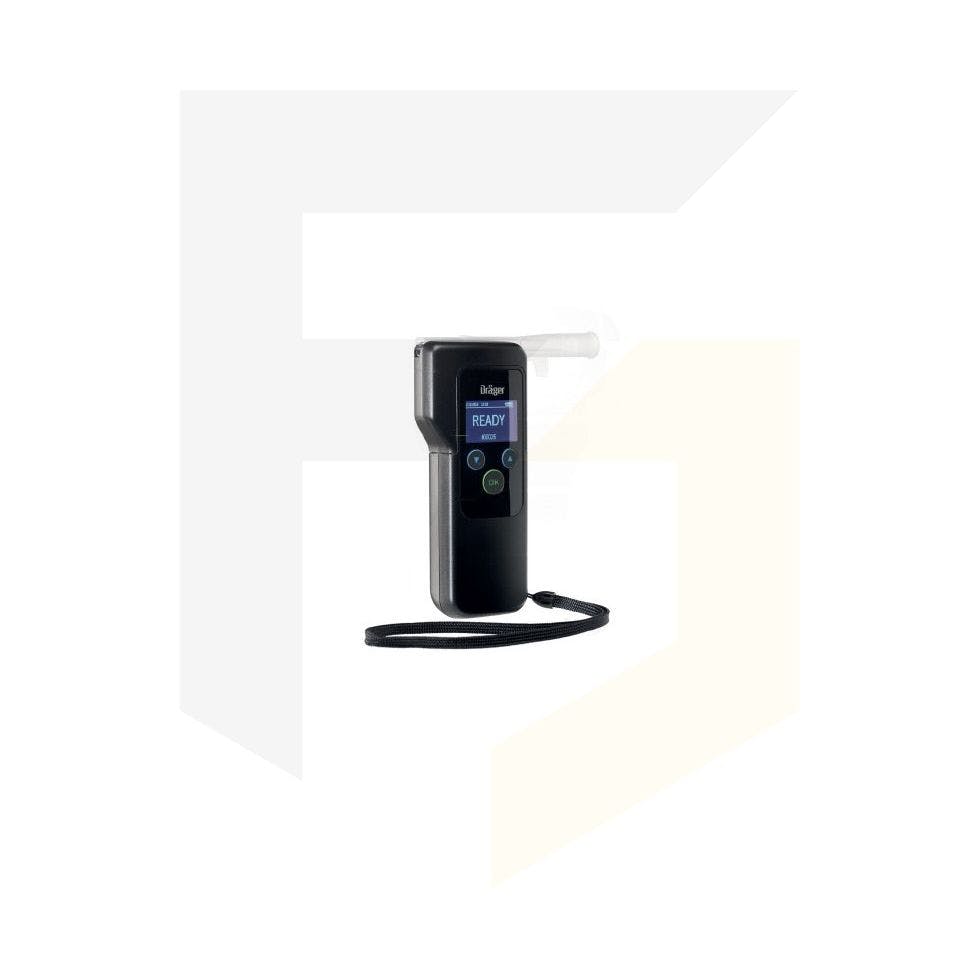

The Drager Alcotest 5820 is a professional breathalyser which carries out breath alcohol tests quickly and efficiently.  This kit includes the Alcotest 5820 device, 3 mouthpieces, 1 battery, a hand loop and a plastic transportation case.
The device is portable and user-friendly, with an easy-to-read LED display.  The Alcotest 5820 uses Slide’n’click mouthpieces which are hygienic as they’re individually sealed.  A spacer also prevents the mouth of the person being tested from coming in to contact with the Alcotest housing.
The mouthpiece can be moved to the left or the right hand side of the instrument and there’s only three buttons on the interface so the Alcotest breathalyser is easy to use.  Drager’s Alcotest can also measure alcohol in the ambient air (passive) without the use of a mouthpiece.

Key Features

Replacement mouthpieces available
Easy to use buttons
Large, back-lit display
LED and audible signals to indicate end of measurement process
Intuitive mouthpiece design allows ‘slide’n’click’ motion
Datalogger – stores last 100 tests with test numbers
Impact resistant ABS/PC housing

Measuring principle

Electrochemical DrägerSensor in 1/4” technology; alcohol specific

Measuring range

0 to 2.5 mg/L; if measurement range limit is exceeded, a message is displayed

Dimensions (W x H x D), weight

Approx. 50/60 x 141 x 31 mm / 2″/2.4″ x 5.6″ x 1.2″; approx. 150g / 0.33 lbs, incl. battery

IP Rating

IP54

Display of measurement result

After approx. 3 s (at 0 mg/L); after approx. 10 s (at 0.5 mg/L, room temperature)

Operating temperature

-5 to +50 °C / 23 to 122 °F

Relative humidity

10 to 100 % relative humidity (non-condensing and in operating state)

Ambient pressure

600 to 1,300 hPa / 17.7 to 38.4 inch Hg

Power supply

1x CR123A-Battery, charge level indicator in display, with one battery approx. 1,500 breath tests can be done.

Instrument configuration

Direct menu-guided configuration of instrument settings (PIN required) No additional PC software needed

Approvals

Vibration and shock – EN 60068-2-27, EN 60068-2-6; EN600-2-64
CE marking – 2004/108/EC (electromagnetic compatibility)
Norm – EN 15964, NHTSA, FDA Conformity, depending on configuration
Warning or deactivation after end of service interval
