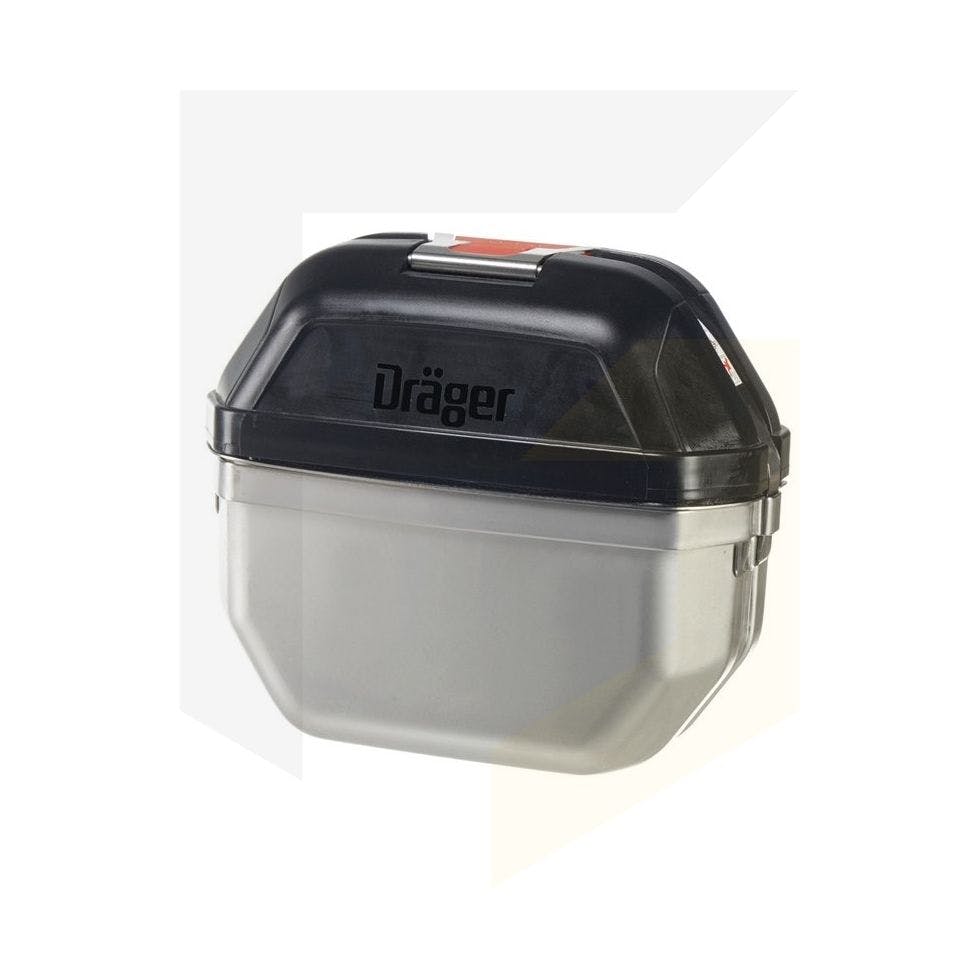

Drager Oxy 3000 MK II KO2 Self-Rescuer
One-handed operation for right and left-handed users
Activation is triggered immediately, when donning the device
Mouthpiece is comfortable to wear
Anti-static parts inside and out of the unit
Stainless steel seal protects the unit from being accidently opened
Support ring allows for exchangeable wearing concept
Protective goggles and nose clip provided
Secure fit thanks to neck strap
Dimensions
(with support ring – hip and in use
225 x 190 x 122 mm
(8.86 x 7.48 x 4.80 in)
When in use
170 x 200 x 80mm
(6.69 x 7.87 x 3.15″)
Weight
2.8kg
When in use – 1.7kg / 60.0 oz
Inhalation/exhalation
resistance
+9.8 hPa or -9.8 hPa
(maximum individual exhalation resistance)
Σ 16 hPa (at the end of the usage period)
Duration
30 min (35 L/min breathing minute volume)
Temperature
Inhalation Temperature
Maximum +50 °C (122 °F) in accordance with DIN EN 13794
Breathing Bag Volume
> 8 Litres
Service Life
10 years @ 5 days/week and 8 hour/shift
Approvals
DIN EN 13794
1 – Use with ambient temperatures up to -20 °C is possible if the oxygen selfrescuer was stored at room temperature before application
and is exposed to -20 °C for no longer than 30 minutes. The oxygen self-rescuer might be difficult to open in cold weather conditions,
and especially at minus temperatures.
2 – Weight and dimensions may differ from the specifications.
