76,800 pixel resolution (320 x 240), -4 to 482°F, sensitivity ≤0.06°C, and down to 170µm per pixel spot size.
The FLIR ETS320 benchtop thermal imager is designed for testing and evaluating laboratory electronics. The ETS320 immediately identifies the presence of heat, either as a hot spot or thermal gradient, which can indicate potential points of failure within a system. This information can be used to determine where and when to add fans and heat syncs to ensure that instruments and circuit boards are operating within range for a maximum lifetime.
The high accuracy of this camera is ideal for quality assurance, factory acceptance testing, and failure analysis. It features a true 45° field of view for broad initial scans to reveal the potential problem. It can detect minute temperature shifts smaller than 0.06°C, and measure small components down to 170µm per pixel spot size.

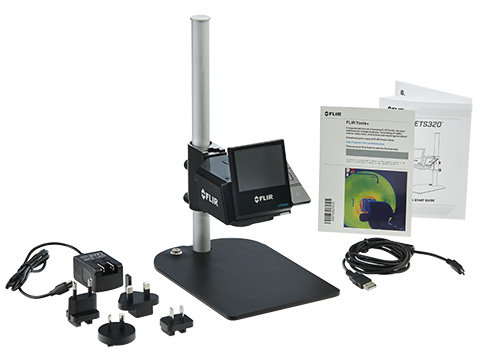

The ETS320 is ergonomically designed for benchtop use. The microscope-style stand can adjust to different heights in order to magnify smaller components or zoom out to read a larger area. It can plug directly into your PC or laptop to view a live image on a larger screen for advanced analysis.
