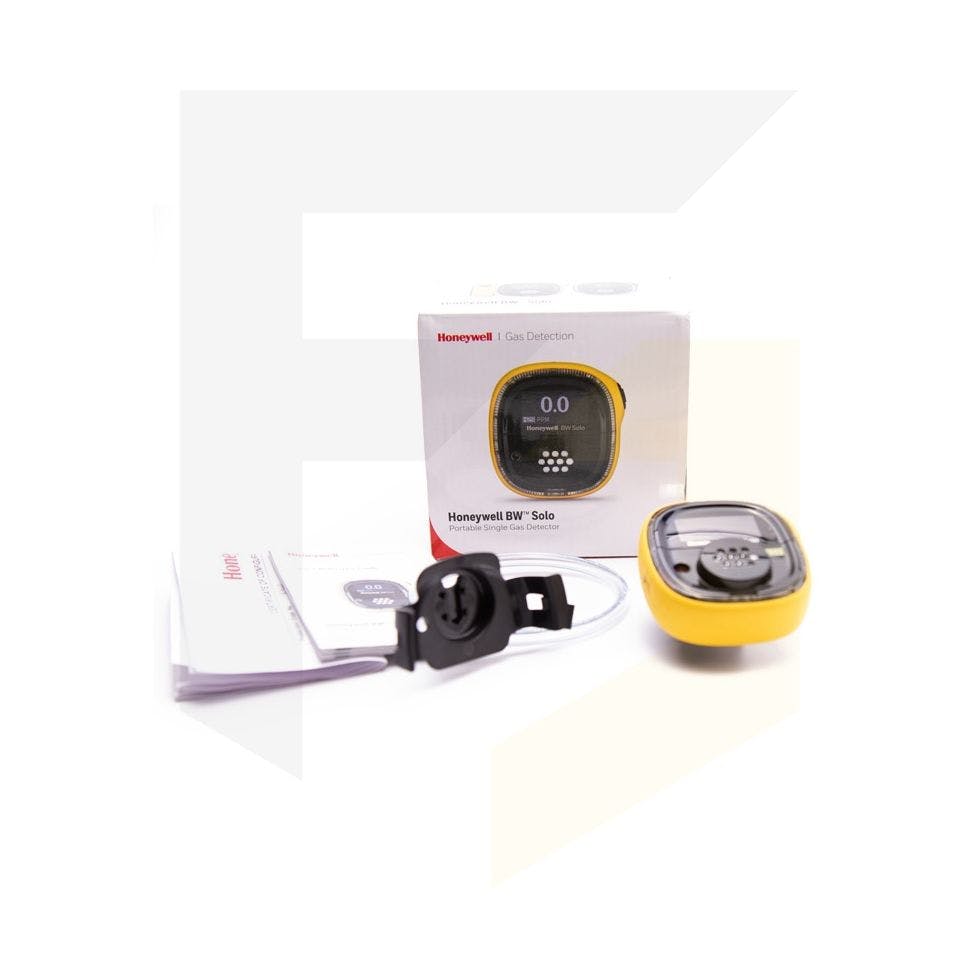

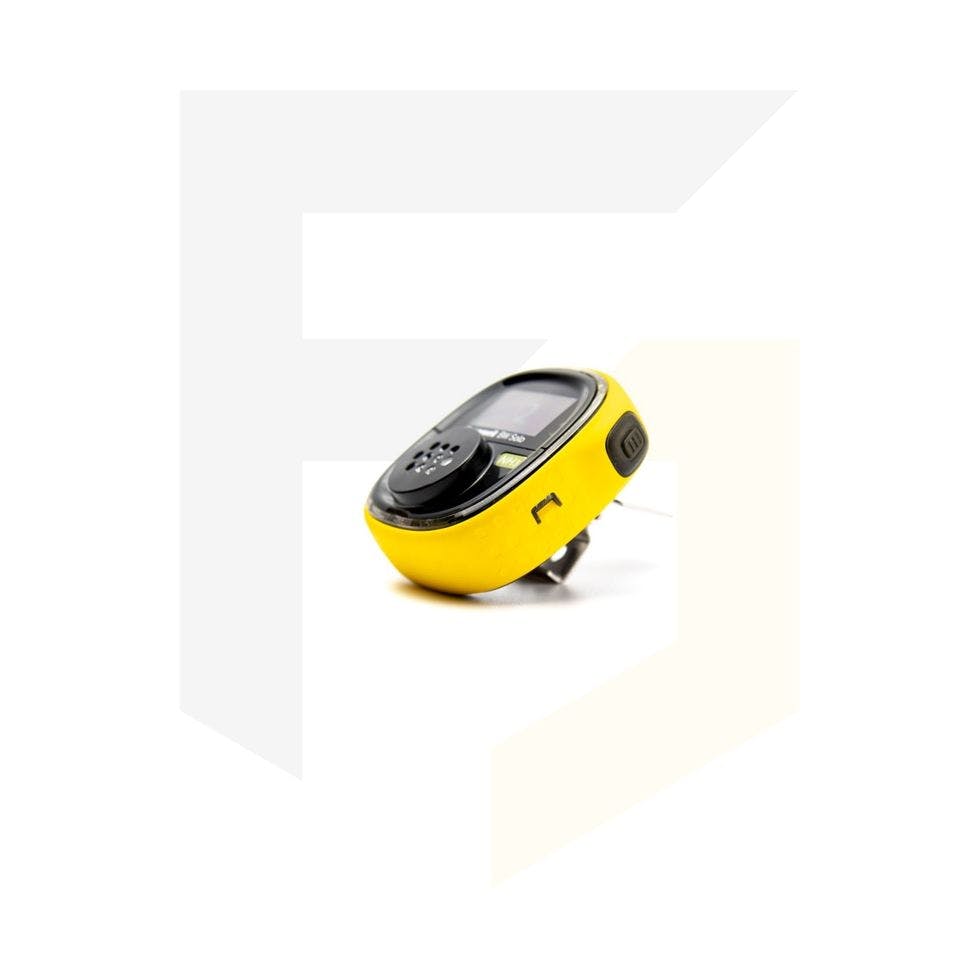

Honeywell BW Solo Gas Detector – Wireless Version

Honeywell BW Solo Gas Detector – Wireless Version
The Honeywell BW Solo Gas Detector is designed to detect specific types of gas.  This particular model is the wireless version and comes in the following configurations:O2, CO, H2S, NH3, CO2, SO2, HCN, CL2, NO, NO2, PH3, ETO, CLO2, O3 and H2
It’s a reusable gas detector and can be serviced (6 monthly acording to manufacturer recommendations).  The Wireless version has many additional uses and features in comparison to the BW Solo Standard and Lite versions.  The wireless BW Solo has BLE bluetooth capability.  This means that it can be connected with Honeywell’s mobile apps, data can be shared without using a doc, wireless data and statuses can be trasmitted and real-time remote alarm notifications are possible.
The Wireless Solo can connect (from up to 6m away) to the Device Configurator app on a phone or tablet with internet connection, which will allow you to go through a set-up of the unit and choose your alarm set points.  It will also allow you to view calibration readings, certs, email these and upgrade firmware.The Safety Communicator app will send readings instantly to Honeywell’s real-time monitoring software, so long as there is internet connection.  This app also provides information on remote visibility on worker safety and location.
The BW Solo gas detectors have a triple alarm system and will audibly and visually alarm when gas is detected, as well as vibrate.

Key Features

Easy to use with one-button operation
Sensor, filter and battery can be easily replaced if required
Battery typically lasts for 12 months but can be replaced (6 months for 1-series O2 sensor/4 months for 1S CO2)
Workers and locations can be assigned using the Assign function, keeps track of inventory
Multiple languages available
Data logging function with a rolling 24-hour peak reading
Ingress Protection – IP68
Carries out self-test on activation to check sensor sensor integrity, circuitry, battery (continuous) and audible/visual alarms

Size

2.7 x 2.6 x 1.4 in. / 7.0 x 6.7x 3.6 cm (1-Series sensor models) `

2.7 x 2.6 x 1.6 in. / 7.0 x 6.7x 4.1 cm (4-Series sensor models)

Weight

3.6 to 4.1 oz. / 103 to 116 g, depending on installed sensor

Humidity

0% – 95% RH (non-condensing)

Typical Battery Life

12 months (6 months for 1-Series O2

Connected Worker
(Wireless Solos Only)

Bluetooth™ Low Energy (BLE) – Ability to connect to Honeywell’s Safety Communicator App

Languages

English, French, Spanish, German, Italian, Russian, Japanese, Chinese, Korean, Portuguese, Dutch

Approvals

n: Class I, Division 1, Groups A, B, C, D T4 Class I, Zone 0, AEx/Ex ia IIC T4 Ga -40°C≤ Tamb ≤ 60°C
ATEX*: Sira 18ATEX2243 X 2460 g II 1G Ex ia IIC T4 Ga g I M1 Ex ia I Ma -40°C≤ Tamb ≤ 60°C
IECEx: IECEx SIR 18.0058 Ex ia IIC T4 Ga / Ex ia I Ma -40°C≤ Tamb ≤ 60°C
FCC ID: SU3BWS1
IC: 20969-BWS1
RED: RE-D Directive 2014/53/EU

*Approval Pending for CO2 model

Warranty

3 years for 1-Series detectors and sensors (H2S, CO, O2, CO2)
2 years for 4-Series detectors and sensors
(1 year for NH3, Cl2, O3, ETO, ClO2 sensors)
