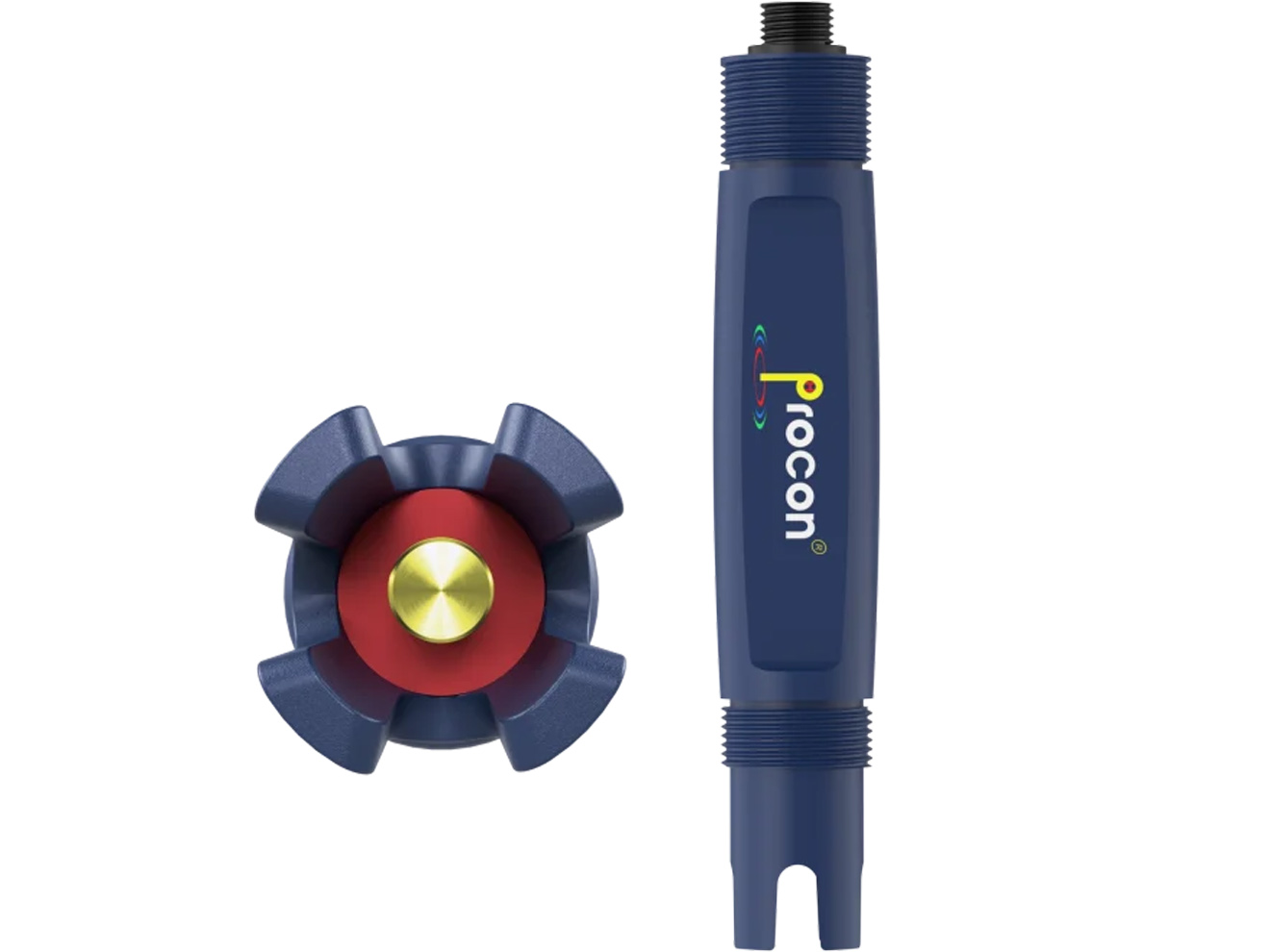

ICON R7C Series ORP Sensors

Features

• 4-20mA and RS485 output
• ±1mV accuracy
• Temperature compensated
• Nexus solid KCI reference, eliminates reference poisoning – extends life expectancy
• No preamp required
• 3/4″ NPT connection
• -1000mV to 1000mV ORP measurement range
• Operating temperature 14 to 176°F
• 145 psi 10 bar maximum pressure

The ProCon R7C Nexus series is engineered for ruggedness, longevity and accuracy and features a gold electrode for enhance accuracy.

The double junction coupled with the solid Nexus KCl infused reference makes the R7C ORP sensor transmitter an excellent choice for complex process media applications. All measurement functions are combined in one compact body — measuring electrode, temperature sensor and an inner reference chamber.

The 2-wire 4-20mA, 4-wire or 4-20mA + RS485 output options simplify calibration and communication with remote displays and controllers.

Applications

Process Control
Water Quality
Sanitization Systems
Neutralization Systems
Effluent Monitoring
Pool and Spa Control
Aquatic Animal Systems
Cooling Towers
