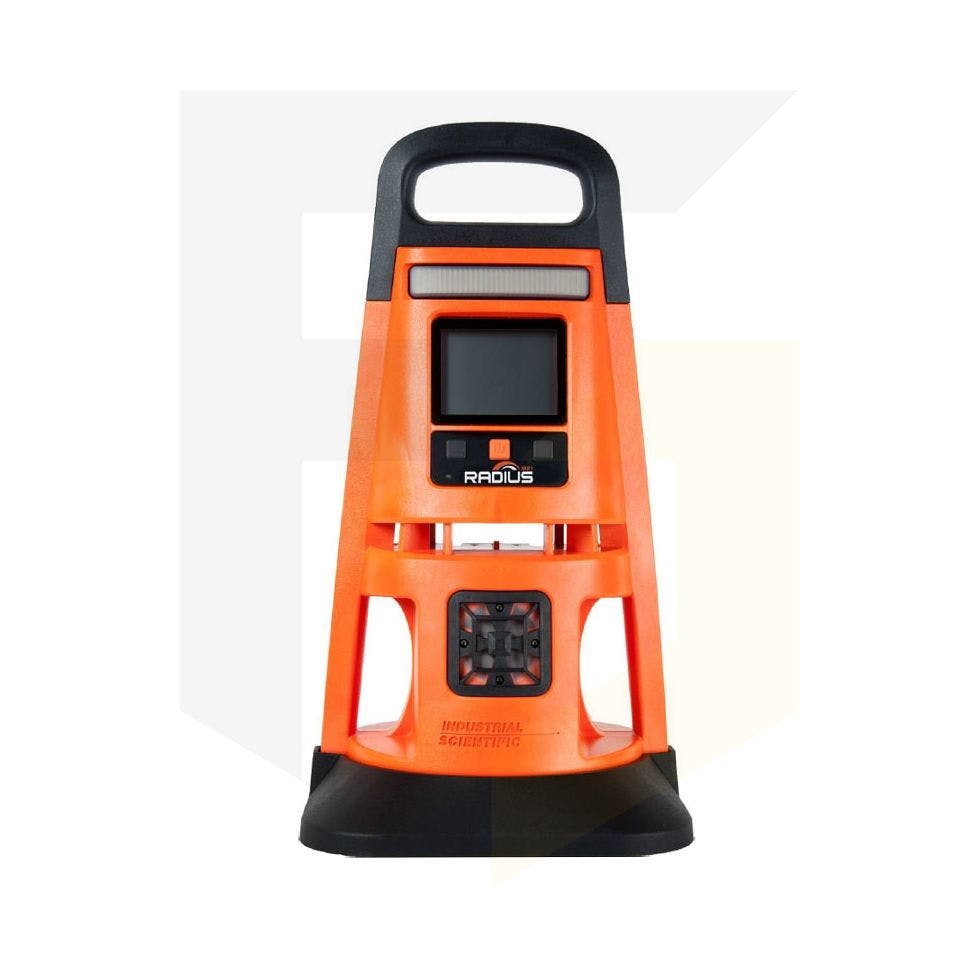

Industrial Scientific Radius BZ1 Area Monitor

Industrial Scientific Radius BZ1 Area MonitorThe Radius BZ1 is an area gas detection monitor that can simultaneously detect up to 7 gases, including LEL (methane), LEL (pentane), O2, H2S, S02 and CO2, has a battery run time of 7 hours and can connect an entire worksite.
The Radius BZ1 is Industrial Scientific’s area monitor within their gas detection range. One of its most attractive features is its ability to connect an entire application through LENS Wireless. Users can share device status and readings and receive instant notifications when other devices have been alarmed. This function instantly communicates emergencies helping to lower response times and improve overall worker safety on-site (up to 300m).
The battery within the device runs on a typical span of 7 days (168 hours), meaning the monitor can be left in the field for up to seven days for reliable and consistent gas detection. Furthermore, the Radius BZ1 can be purchased alongside the Solar Power Supply for an unlimited and environmentally friendly power supply.
The Radius BZ1’s exterior is a bright and rugged build which makes it suitable for a wide range of applications and environments and can be deployed instantly after start-up. The large display helps to communicate to workers from a distance. It can provide customisable alarm action messages such as “VENTILATE” or “EVACUATE”, further helping to create faster response times on site.
The monitor uses Dual Sense Technology sensors that increase reliability due to redundant protection as two sensors can detect the same gas. This means if one sensor fails, the second one will still monitor the gas and continue to protect the site.

Key Features

A very high noise alarm sounds at 109dB and distinguished coloured visual alarms to distinguish critical and non-critical events.
Three-button keypad
The monitor data logs for at least three months at 10-second intervals and event logs for 60 alarm events.
The outer casing is made of Impact-resistant polycarbonate alloys.
LENS Wireless compatible provides –

The ability to view peer readings and alarms between peer monitors helps workers make informed decisions in real-time.
Alarms such as “man down” and “panic” can be set if workers are unresponsive.
Optional LENS Wireless software allows workers to share gas readings, identify peer alarms, view gas readings and activate panic alarms.
Flexible use such as – perimeter monitoring, fence line monitoring and confined space monitoring

The device can be charged while it is not in use by using a power and supply cord.
IP66 rating means the monitor is fully dust-tight from dust and other particles with a vacuum seal and is protected against high-pressure water jets.
iNet Now compatible

SUPPLIED WITH MONITOR

Calibration cup (without pump), sample tubing and pump inlet water barrier (with pump), hand tool, charging power supply, and region-specific cord

DIMENSIONS

29 x 29 x 55 cm (11.5 x 11.5 x 21.5 in)

WEIGHT

7.5 kg (16.5 lb)

SENSORS

Up to 6 sensors (catalytic bead, photoionization detector, and electrochemical) Up to 7 simultaneous readings

MEASURING RANGES

CATALYTIC BEAD

Combustible Gases: 0-100% LEL in 1% increments

ELECTROCHEMICAL

Ammonia (NH3): 0-500 ppm in 1 ppm increments

Carbon Monoxide (CO): 0-1,500 ppm in 1 ppm increments

Carbon Monoxide (CO High Range): 0-9,999 ppm in 1 ppm increments

Carbon Monoxide (CO/H2 Low): 0-1,000 ppm in 1 ppm increments

Carbon Monoxide/Hydrogen Sulfide: CO: 0-1,500 ppm in 1 ppm increments H2S: 0-500 ppm in 0.1 ppm increments

Chlorine (Cl2): 0-50 ppm in 0.1 ppm increments

Hydrogen (H2): 0-2,000 ppm in 1 ppm increments

Hydrogen Sulfide (H2S): 0-500 ppm in 0.1 ppm increments

Hydrogen Cyanide (HCN): 0-30 ppm in 0.1 ppm increments

Nitrogen Dioxide (NO2): 0-150 ppm in 0.1 ppm increments

Oxygen (O2): 0-30% vol in 0.1% increments

Sulfur Dioxide (SO2): 0-150 ppm in 0.1 ppm increments

Phospine (PH3): 0-5 ppm in 0.01 ppm increments

Nitric Oxide (NO): 0-1,000 ppm in 1 ppm increments

PHOTOIONIZATION

Volatile Organic Compounds (10.6 eV): 0-2,000 ppm in 0.1 ppm increments

WARRANTY

Two-year warranty, including sensors and battery

TEMPERATURE RANGE:

-20 °C to 55 °C (-4 °F to 131 °F)

HUMIDITY RANGE

15% to 95% non-condensing (continuous)

DISPLAY/READOUT

11.2 cm (4.4 in) monochrome backlit graphical liquid crystal display (LCD)

POWER SOURCE/RUN TIME

Rechargeable nickel-metal hydride (NiMH) battery pack

7 days (168 hours) typical @ 20 ºC, without pump, with wireless

3.5 days (84 hours) typical @ 20 ºC, with pump, with wireless

30 days (720 hours) typical @ 20 ºC, electrochemical sensors only, without pump, with wireless

 ≤8 hour recharge time

ALARMS:

108 decibel (dB) at 1 m (3.3 ft) redundant audible alarms Redundant, visual alarm LEDs (red and blue)

PUMP

Optional integral pump, up to 30.48 m (100 ft) sample draw

WIRELESS

Optional LENS™ Wireless, proprietary mesh network

Frequency: ISM license-free band (2.405 – 2.480 GHz)

Max Peers: 25 devices per network group; 10 independent, configurable network groups

Range: 300 m (~1,000 ft) line of sight

Encryption: AES-128

Approvals: FCC Part 15, IC, CE/RED, others**

CERTIFICATIONS

INGRESS PROTECTION IP66

ATEX: Ex da ia IIC T4 Ga, Equipment Group and Category II 1G

China CPC: China CPC

China EX: Ex d ia IIC T1 Ga; Ex d ia IIC T4 Gb IR sensor

CSA: Cl I, Div 1, G A-D, T4 C22.2 No. 152 applies only to %LEL thermo-catalytic reading

IECEx: Ex da ia IIC T4 Ga

INMETRO: Ex da ia IIC T4 Ga; Ex db ia IIC T4 Gb IR sensor

KC: Ex d ia IIC T4

UL: Cl I, Div 1, Gr A-D, T4; Cl 1 Zone 0 AEx da ia IIC T4 Ga1

LANGUAGE

English, French, Spanish, German

* These specifications are based on performance averages and may vary by instrument.

** See www.indsci.com/wireless-certifications for country-specific wireless approvals and certifications.
