Industrial Scientific Tango TX1 Single-Gas Monitor (Diffusion)

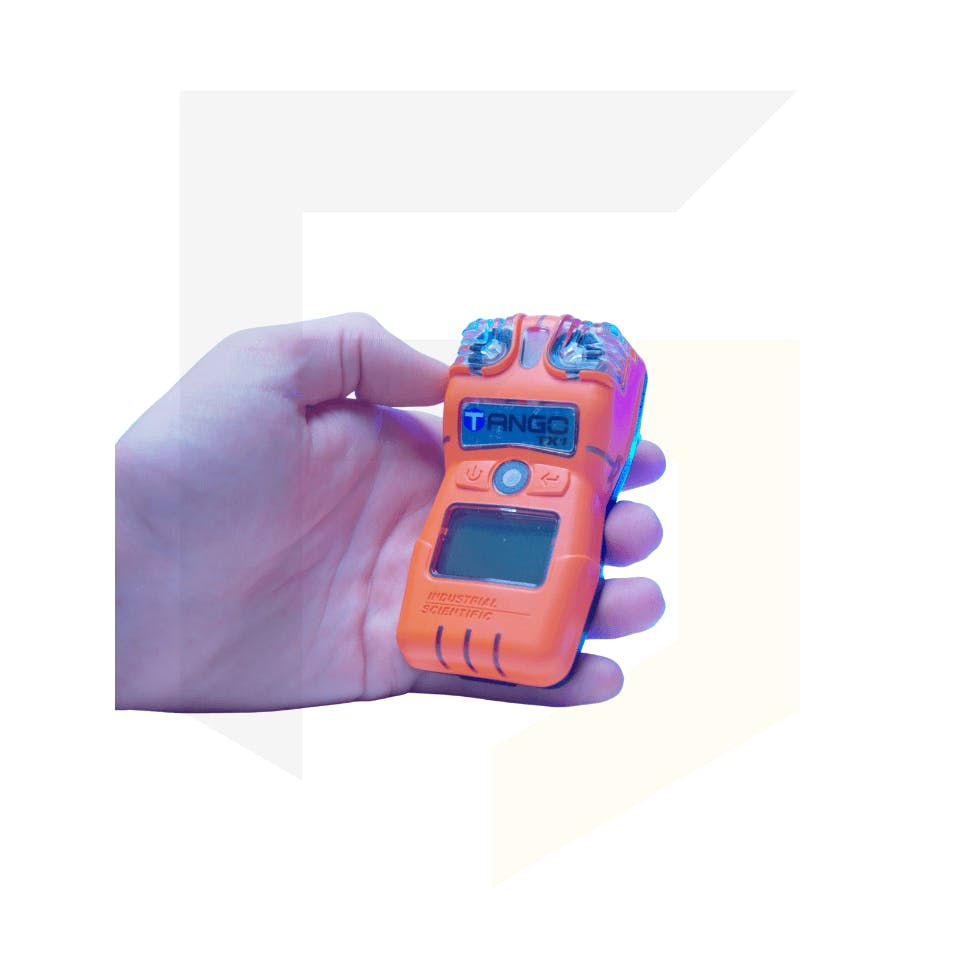

Industrial Scientific Tango TX1 Single-Gas Monitor
(Diffusion)The Tango TX1 is a single gas monitor with a lifetime of 2 years and can monitor one of the following gases, CO, CO/H2 Low, H2S, NO2, SO2.
The Tango TX1 is Industrial Scientific’s single gas monitor that is a lightweight and wearable personal gas monitor and is available to purchase in variable configurations. The TX1 uses dual sense technology by using two redundant sensors to detect the single gas and support each other if one fails. Industrial Scientific describe this monitor as one of the “safest single gas detectors” of their range.
The Tango TX1 is ideal for personal gas detection. It is compact, lightweight, can be clipped to clothing, and is suited for various applications, including oil and gas, mining and chemical refining industries. When alarmed, the TX1 notifies users quickly and clearly of any detections by coloured strobe-emitting LED lights and a 100dB audible alarm.

Key Features

Dual Sense sensor technology that increases user safety
Provides gas alerts
Has the ability to track data logging continuously for three months and 60 alarm events
The Alarm Amp can be purchased to increase the noise alarm to 110dB
The case has a protective top rubber overmold, top-mounted sensors, a two-button keypad and an LCD screen.
IP66/7 rating means the monitor is fully dust-tight, protected against direct high-pressure jets and water immersion for up to 30mins at depths of 15cm-1m.
Compatible with Industrial Scientifics iNet Control that can track alarm history.
It comes with the Guaranteed for Life Warranty for replaceable batteries and sensors to extend the life of the instrument.

INSTRUMENT WARRANTY

Guaranteed for Life™. Warranted for as long as the instrument is supported by Industrial Scientific Corporation (excludes sensors, batteries, and filters). CO and H2S sensors are warranted for three years. All other sensors are warranted for two years.

DIMENSIONS

99 x 51 x 35 mm (3.9 x 2.0 x 1.4 in)

WEIGHT

126.0 g (4.4 oz)

SENSORS

CO, CO/H2, H2S, NO2, SO2 – Electrochemical sensor technology

SENSOR MEASURING RANGES

Carbon Monoxide (CO): 0 to 1,000 ppm in 1 ppm increments Carbon Monoxide (CO/H2 low): 0 to 1,000 ppm in 1 ppm increments Hydrogen Sulfide (H2S): 0.0 to 500.0 ppm in 0.1 ppm increments Nitrogen Dioxide (NO2): 0.0 to 150.0 ppm in 0.1 ppm increments Sulfur Dioxide (SO2): 0.0 to 150.0 ppm in 0.1 ppm increments

ALARMS

Three strobe-emitting visual alarm LEDs (two red; one blue) 100 decibel (dB) audible alarm at a distance of 10 cm (3.94 in); Vibration alarm

TEMPERATURE RANGE

-40 °C to 50 °C (-40 °F to 122 °F) **

HUMIDITY RANGE

15% to 95% Non-condensing (continuous)

BATTERY

3.6 V Primary lithium-thionyl chloride (Li-SOCl2); 1.5AH, 2/3AA; replaceable; non rechargeable; always on; up to 2-year run time depending on operating conditions

DATA LOGGING

3 months at 10-second intervals

EVENT LOGGING

60 alarm events

CERTIFICATIONS

-40 °C to 50 °C (-40 °F to 122 °F)

ATEX: Ex ia I Ma; Ex ia IIC T4 Ga; Equipment Group/Category: I M1/II 1G

CSA : Cl I, Gr A-D, T4; Ex ia IIC T4

IECEx: Ex ia I Ma; Ex ia IIC T4 Ga

INMETRO: Ex ia I Ma; Ex ia IIC T4 Ga

UL (C-US): Cl I, Gr A-D, T4; Cl II, Gr E-G; Cl I, Zone 0, AEx ia IIC T4

-20 °C to 50 °C (-4 °F to 122 °F)

China Ex: Ex ia IIC T4 Ga

CMA: Ex ia I Ma; H2S, CO

EAC: PO Ex ia I X; 0 Ex iX IIC T4 X

KC: Ex ia IIC T4
