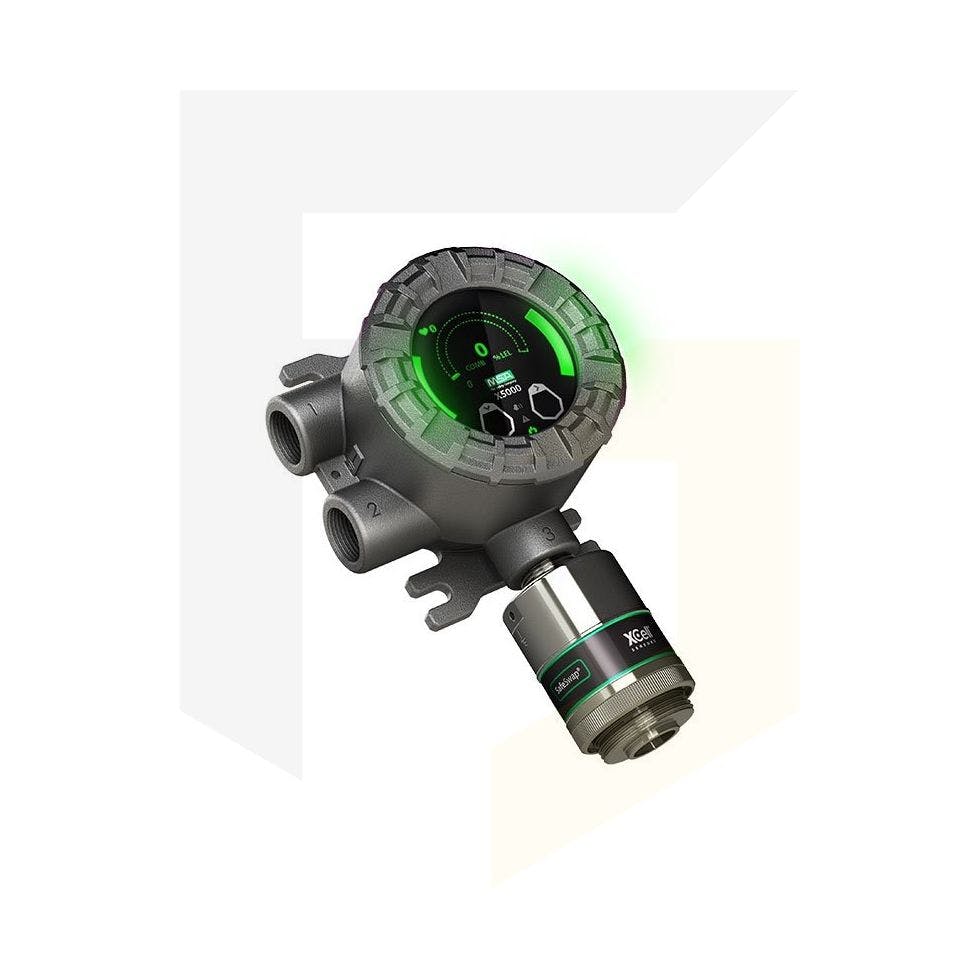

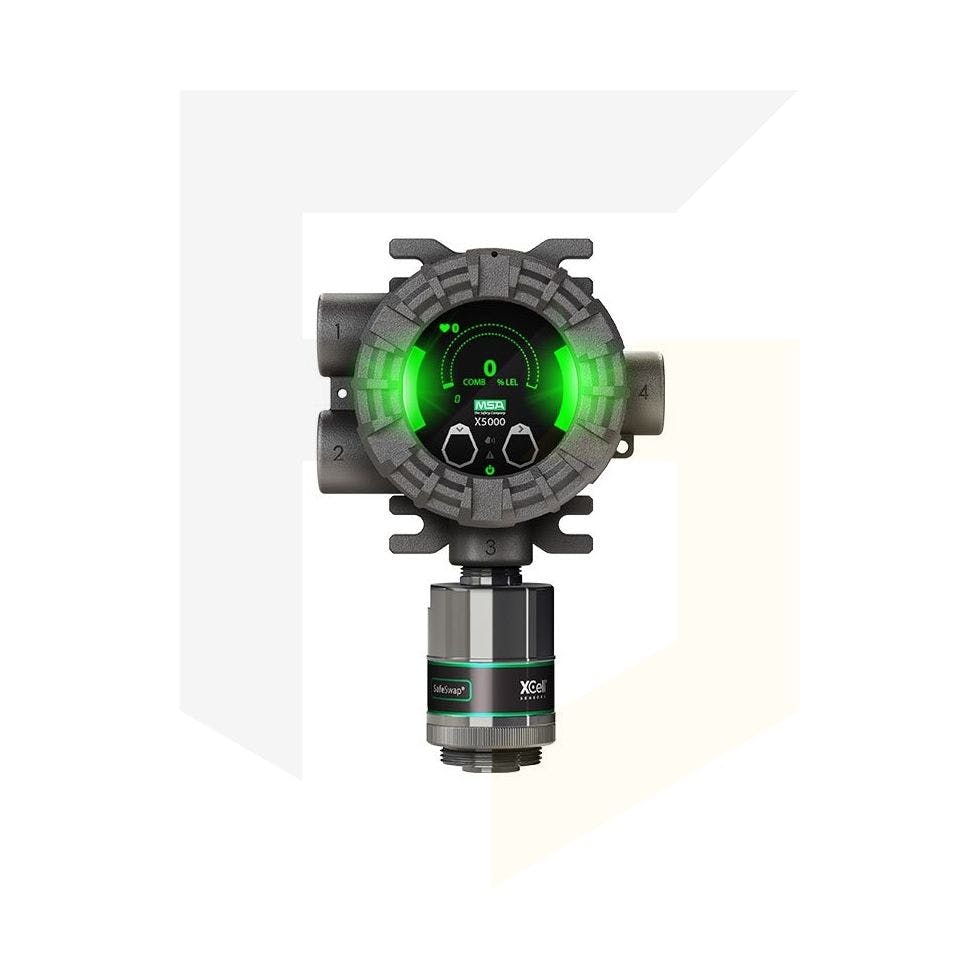

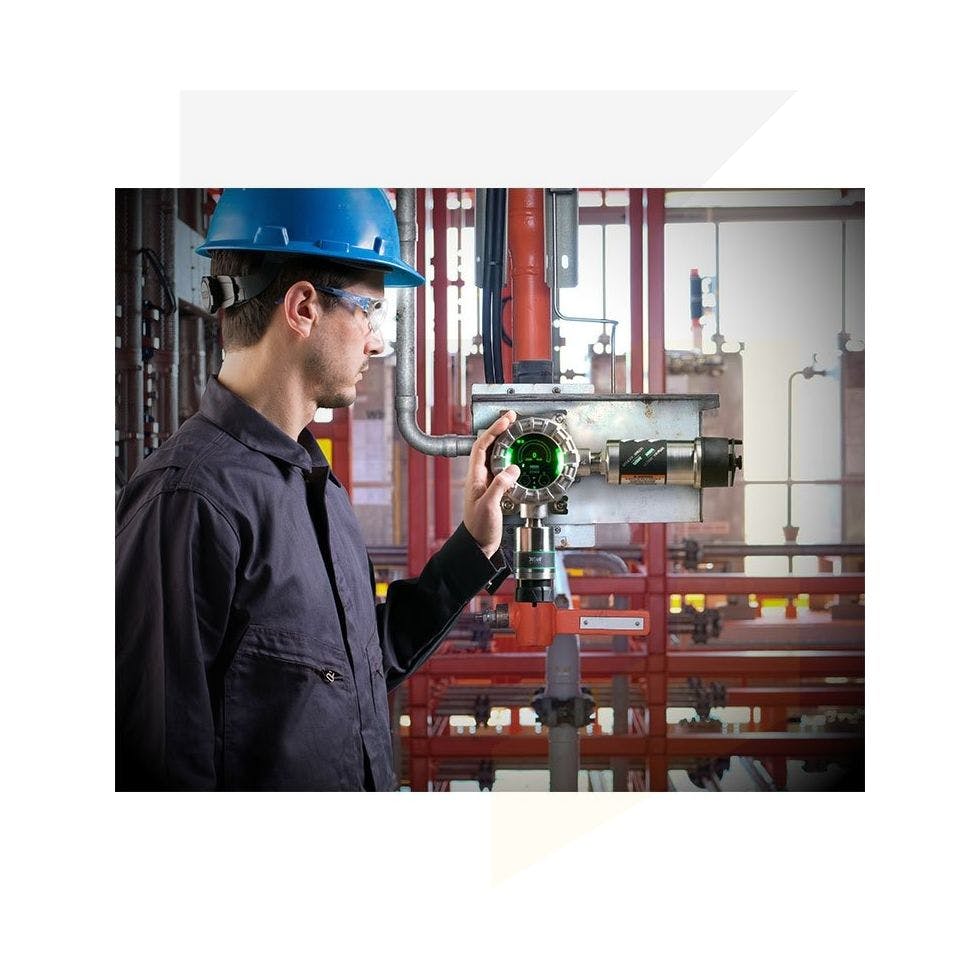

The MSA Ultima X5000 is the future of Gas Detection for oxygen, toxic, and combustible gases. With a newly advanced OLED Display capable of 9 languages, it is easy to read and navigate due to the industry-first touch screen interface, allowing for a tool free user experience. MSA’s patented XCell sensors with TruCal increase calibration cycles for as long as 18 months (H2S & CO specific). The Ultima X5000 supports up to 2 Digital sensors or 1 IR detector and 1 digital sensor simultaneously with 4 wire connections (Configurable with 1 or 2 sensors).
MSA’s patented TruCal Technology in the Ultima X5000 self-checks 4x every day resulting in stress free operation, better stability and extended calibration cycles. TruCal compensates for factors that may cause electrochemical sensor drift by continually monitoring sensor integrity and compensating for factors that may impact this (H2S & CO TruCal sensors only), truly separating itself from competition.
An acoustic signal is sent every 6 hours ensuring the sensor inlets are not blocked, allowing gas to reach the sensor, known as diffusion supervision. If blocked the unit will go into fault mode, then return to normal operation once the blockage is removed. Sensors can be selected without Diffusion Supervision
SafeSwap ensures the gas sensors can be replaced quickly and safely without turning off the device. Sensors can be mixed and matched to meet your gas detection needs, further displaying the unique benefits of this product. This device is fully configurable allowing it to be tailored to your specific needs and can be used across a

Fits existing MSA X series wall mounts
Sensor readings adjusted in line with environmental factors
3-year warranty & expected life of around 5-years for XCell sensors
Corrosion resistant 316L stainless steel
IP66 Rated

Combustible Gas Sensor Type

• Catalytic Bead (XCell Comb)
• Infrared (XIR PLUS)

Toxic Gas & Oxygen Sensor Type

• Carbon Dioxide CO2 (XIR Plus)
• Carbon Monoxide CO (XCell Toxic)
• Carbon Monoxide CO H2-Resistant (XCell Toxic)
• Hydrogen Sulphide H2S (XCell Toxic)
• Oxygen O2 (XCell O2)
• Sulphur Dioxide SO2 (XCell SO2)

Sensor Measuring Ranges

• Combustible: 0-100% LEL
• CO2: 0-2%, 0-5% Vol
• CO: 0-100, 0-500, 0-1000 ppm
• CO-H2Resist: 0-100 ppm
• H2S: 0-10, 0-50, 0-100 ppm
• O2: 0-25%
• SO2: 0-25 ppm

Typical Sensor Life

5 years – XCell Sensors

10 years – infrared

Sensor Performance

T90 (Typical)

Repeatability

Zero Drift (Per Year)

XIR Plus Comb

< 2 sec.

< +/- 1% LEL

n/a

XIR Plus CO2

< 6 sec.

< +/- 1% Vol

n/a

XCell Comb

< 22 sec.

< +/- 3% LEL

≤ 5% LEL

XCell CO

< 9 sec.

< +/- 1%

≤ 1% full scale

XCell H2S

< 23 sec.

< +/- 1%

≤ 1% full scale

XCell O2

< 11 sec.

< +/- 0.1% Vol

≤ 0.2% Vol

XCell SO2

< 6 sec.

+/- 1%

≤ 1%FS per mo.

Approvals Classification

Divisions (US/Canada)

Class I, II, III; Div 1&2, T4/T5/T6;

Zones (Global)

Ex db nA IIC T5 Gb (Class I, Zone 1/ Zone 2)

Ex tb IIIC T85°C Db (Class II, Zone21)

Enclosure rating

Type 4X, IP66

Markings vary by component. See Manual for

specific component markings.

Warranty

• X5000 Transmitter: 2 years
• XIR PLUS: 10 years source, 5 years electronics
• XCell Sensors: 3 years

Approvals

CSA, ATEX, IECEx, Inmetro, DNV Marine, CE

Marking.

Complies with C22.2 No. 152, FM 6320

RED, FCC, Suitable for SIL 2

Operating Temperature Range

XCell: -40°C to +60°C

XIR PLUS: -40°C to +60°C

(may differ by gas, see manual)

Storage Temperature Range

40°C to +60°C

Relative Humidity

(non-condensing)

• 10-95% (XCell Toxics & O2 )
• 0-95% (XCell Comb)
• 15-95% (XIR PLUS)

Input Power

11 to 30 VDC, 3 wire, <5W nominal

Signal Output

Dual 4-20 mA current source, HART

Bluetooth

(optional)

Bluetooth Low Energy (BLE) v4.3 or higher

Relay Ratings

• 5A @ 30VDC; 5A @220 VAC
• (3X) SPDT – fault, warn, alarm

Relay Modes

Common, discrete, horn

Nominal max

Power

(w/ relays)

• XIR PLUS 6.7W
• XCell Comb 4.9W
• XCell Toxic & O2 2.8W
• XIR PLUS and XCell Comb 10.9W
• XIR PLUS and XCell Toxic & O2 7.0W
• Dual XIR PLUS 11.6W
• Dual XCell Toxic & O2 3.6W
• Dual XCell Comb 10.6W
• Dual XCell Comb and XCell Toxic & O2 5.3W

EMC Directive

Complies with EN 50270, EN 61000-6-4,

EN 61000-6-3

Display

Organic LED (multi-lingual) with Contrast Ratio of

2000:1 and View Angle of 160°

Hart

HART 7, HART device description language

available

Faults Monitored

Low supply voltage, RAM checksum error, flash

checksum error, EEPROM error, internal circuit

error, relay, invalid sensor configuration, sensor

faults, calibration faults, general system)

Wiring Requirements

3-wire (single sensor) or 4-wire (dual sensor)

shielded cable.

Refer to manual for mounting distances and wire gauge.

HOUSING (W X H)

w/ XCell Sensor

w/ XCell Sensor &

XIR Sensor

5.88” x 5.71” [150 mm x 145mm]

5.88” x 10.15” [150 mm x 258 mm]

13.42” x 10.15” [341 mm x 258 mm]

Lid (Depth)

w/ Relay Board

w/o Relay board

• 4.86” [123mm]
• 3.86” [98 mm]

Weight

8.8 lbs (4 kg) – 316 SS
