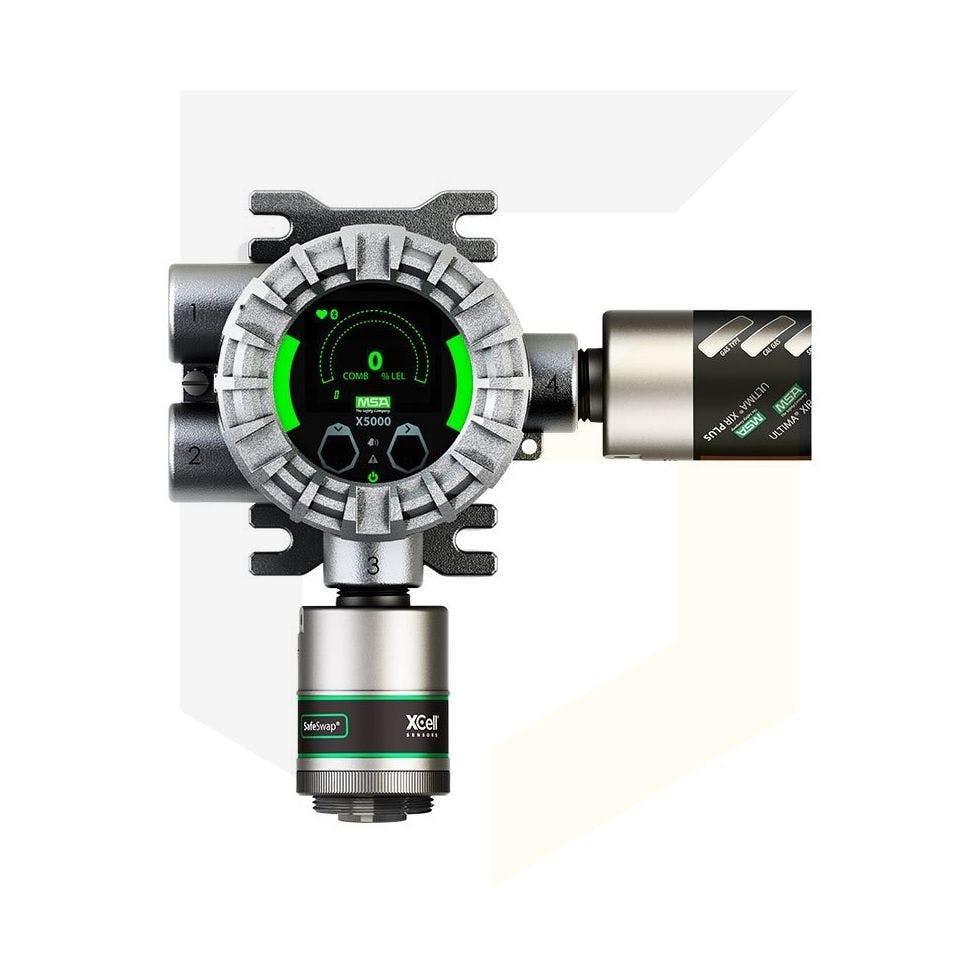

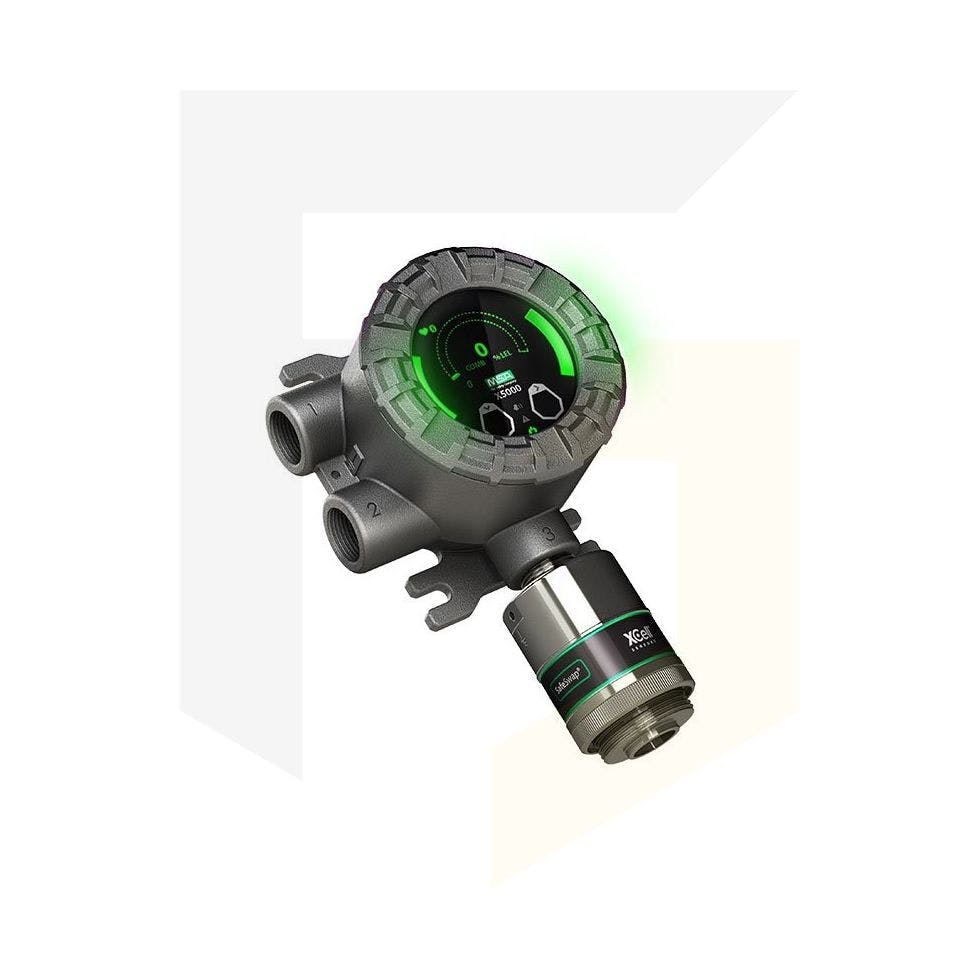

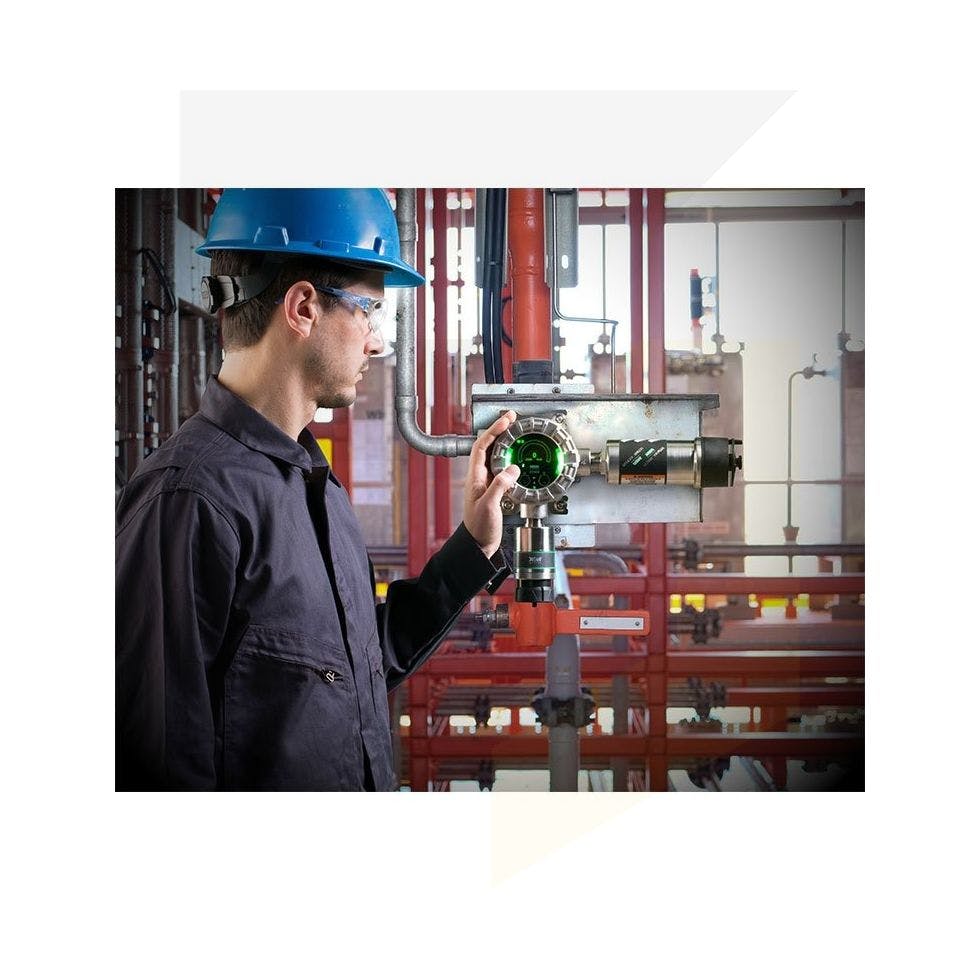

MSA Ultima X5000 – Gas Monitor / Dual Sensor with Relay

MSA Ultima X5000 – Gas Monitor / Dual Sensor with Relay
The MSA Ultima X5000 is the future of Gas Detection for oxygen, toxic, and combustible gases. With an advanced Organic LED (OLED) Display that is visible from a distance up to 50ft and its unique touch screen interface means no tools are required to operate. Calibration cycles can be extended by up to 18 months due to MSA’s XCell sensors and their patented TruCal technology.
The Ultima X5000 provides worriless operation, self-checking 4 times a day for more stability and increased calibration cycles through TruCal. It also compensates for factors that result in electrochemical sensor drift by monitoring sensor integrity and compensating for factors that may impact this (H2S & CO digital sensors only).
Every 6 hours an acoustic signal is sent ensuring the sensor inlets are not blocked, known as diffusion supervision. This also recognises when sensors are blocked and puts the unit into fault mode if blocked. Once the blockage is cleared the device will return to normal operation.
Gas sensors can be replaced quickly and safely without turning off the device due to patented SafeSwap technology, fully displaying the benefits of this device. The Ultima X5000 is fully configurable allowing it to be designed to your specific needs and can suited for use in a variety of applications.

Key Features

Industry-first touch screen interface
IP66
Fits current X Series wall mounts
Alerts up to 75ft away via Bluetooth
Bright green, yellow and red status LEDs
X/S connect app (reduce setup time by 50%)
Alarms and settings are adjustable

Combustible Gas Sensor Type

Catalytic Bead (XCell Comb)

Infrared (XIR PLUS)

Toxic Gas & Oxygen Sensor Type

Carbon Dioxide CO2 (XIR Plus)

Carbon Monoxide CO (XCell Toxic)

Carbon Monoxide CO H2-Resistant (XCell Toxic)

Hydrogen Sulphide H2S (XCell Toxic)

Oxygen O2 (XCell O2)

Sulphur Dioxide SO2 (XCell SO2)

Sensor Measuring Ranges

Combustible: 0-100% LEL

CO2: 0-2%, 0-5% Vol

CO: 0-100, 0-500, 0-1000 ppm

CO-H2Resist: 0-100 ppm

H2S: 0-10, 0-50, 0-100 ppm

O2: 0-25%

SO2: 0-25 ppm

Typical Sensor Life

5 years – XCell Sensors

10 years – infrared

Sensor Performance

T90 (Typical)

Repeatability

Zero Drift (Per Year)

XIR Plus Comb

< 2 sec.

< +/- 1% LEL

n/a

XIR Plus CO2

< 6 sec.

< +/- 1% Vol

n/a

XCell Comb

< 22 sec.

< +/- 3% LEL

≤ 5% LEL

XCell CO

< 9 sec.

< +/- 1%

≤ 1% full scale

XCell H2S

< 23 sec.

< +/- 1%

≤ 1% full scale

XCell O2

< 11 sec.

< +/- 0.1% Vol

≤ 0.2% Vol

XCell SO2

< 6 sec.

+/- 1%

≤ 1%FS per mo.

Approvals Classification

Divisions (US/Canada)

Class I, II, III; Div 1&2, T4/T5/T6;

Zones (Global)

Ex db nA IIC T5 Gb (Class I, Zone 1/ Zone 2)

Ex tb IIIC T85°C Db (Class II, Zone21)

Enclosure rating

Type 4X, IP66

Markings vary by component. See Manual for

specific component markings.

Warranty

X5000 Transmitter: 2 years

XIR PLUS: 10 years source, 5 years electronics

XCell Sensors: 3 years

Approvals

CSA, ATEX, IECEx, Inmetro, DNV Marine, CE

Marking.

Complies with C22.2 No. 152, FM 6320

RED, FCC, Suitable for SIL 2

Operating Temperature Range

XCell: -40°C to +60°C

XIR PLUS: -40°C to +60°C

(may differ by gas, see manual)

Storage Temperature Range

40°C to +60°C

Relative Humidity

(non-condensing)

10-95% (XCell Toxics & O2 )

0-95% (XCell Comb)

15-95% (XIR PLUS)

Input Power

11 to 30 VDC, 3 wire, <5W nominal

Signal Output

Dual 4-20 mA current source, HART

Bluetooth

(optional)

Bluetooth Low Energy (BLE) v4.3 or higher

Relay Ratings

5A @ 30VDC; 5A @220 VAC

(3X) SPDT – fault, warn, alarm

Relay Modes

Common, discrete, horn

Nominal max

Power

(w/ relays)

XIR PLUS 6.7W

XCell Comb 4.9W

XCell Toxic & O2 2.8W

XIR PLUS and XCell Comb 10.9W

XIR PLUS and XCell Toxic & O2 7.0W

Dual XIR PLUS 11.6W

Dual XCell Toxic & O2 3.6W

Dual XCell Comb 10.6W

Dual XCell Comb and XCell Toxic & O2 5.3W

EMC Directive

Complies with EN 50270, EN 61000-6-4,

EN 61000-6-3

Display

Organic LED (multi-lingual) with Contrast Ratio of

2000:1 and View Angle of 160°

Hart

HART 7, HART device description language

available

Faults Monitored

Low supply voltage, RAM checksum error, flash

checksum error, EEPROM error, internal circuit

error, relay, invalid sensor configuration, sensor

faults, calibration faults, general system)

Wiring Requirements

3-wire (single sensor) or 4-wire (dual sensor)

shielded cable.

Refer to manual for mounting distances and wire gauge.

HOUSING (W X H)

w/ XCell Sensor

w/ XCell Sensor &

XIR Sensor

5.88” x 5.71” [150 mm x 145mm]

5.88” x 10.15” [150 mm x 258 mm]

13.42” x 10.15” [341 mm x 258 mm]

Lid (Depth)

w/ Relay Board

w/o Relay board

4.86” [123mm]

3.86” [98 mm]

Weight

8.8 lbs (4 kg) – 316 SS
