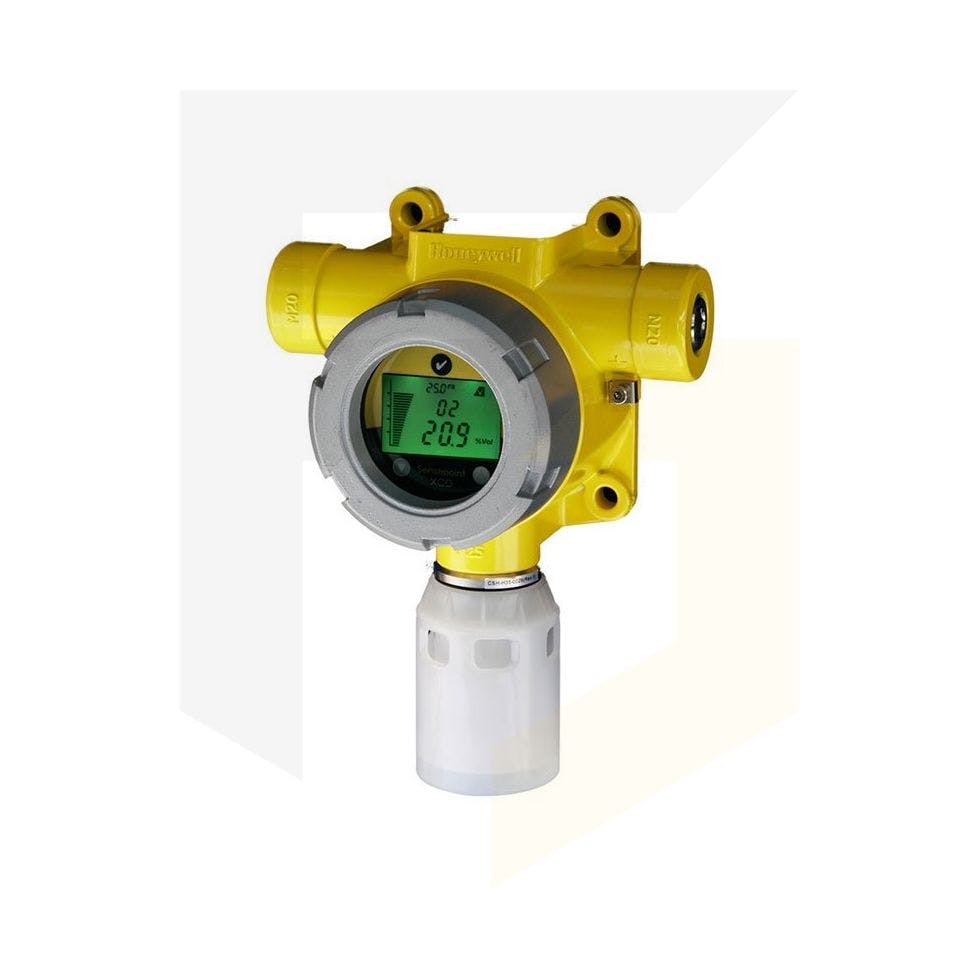

Sensepoint XCD AluminiumThe Honeywell Sensepoint XCD Aluminium is an all-in-one fixed gas detection system that’s capable of monitoring flammable toxic and oxygen gases in atmospheres at risk of explosion. This housing on this version of the Sensepoint XCD is made from aluminium. The detector comes pre-configured and includes 2 programmable alarm relays, 1 programmable fault relay and an industry-standard 4-20mA output and modbus.
Available sensors include oxygen, hydrogen sulphide, carbon monoxide, hydrogen, nitrogen dioxide (all electrochemical), flammable (catalytics bead sensor), methane, propane and carbon dioxide (all infrared sensors). The system can be fitted in both indoor and outdoor applications such as industrial manufacturing, power plants, waste water facilities, food and beverage production and onshore oil and gas terminals.  A weather-proof cap can be used for harsh conditions.
The Sensepoint XCD Aluminium is modular, and operation of the detector can be modified using the LCD and magnet switches without having to open the unit.  This includes settings such as the scale, range, relay, operation, alarm set point and electronic tag number.  The advantages of this are one-man operation and a reduction in routine maintenance cost and time.
There are three different types of Sensepoint XCD transmitters to use with three different families of sensors. This includes mV, EC and oxygen transmitters and sensors.  Once the sensor is plugged in to the bottom of the transmitter it will automatically configure itself and will auto-recognise the sensor within its sensor family.
Available options include:XCD Gas Detector, 4 to 20 mA output, ATEX/IECEx/Asian approvals, 2 x M20 entries, painted LM25, includes catalytic sensor cartridge 0 to 100%LEL, user selectable FSD between 20% and 100%LEL (10%LEL resolution), includes nylon weather protection
XCD Gas Detector, 4 to 20 mA output, ATEX/IECEx/Asian approvals, 2 x M20 entries, painted LM25, includes carbon monoxide EC sensor cartridge 0 to 300ppm, user selectable FSD between 100 and 1000ppm (100 ppm resolution), includes nylon weather protection
XCD Gas Detector, 4 to 20 mA output, ATEX/IECEx/Asian approvals, 2 x M20 entries, painted LM25, includes infrared carbon dioxide sensor cartridge 0 to 2.0% v/v, includes nylon weather protection
XCD Gas Detector, 4 to 20 mA output, ATEX/IECEx/Asian approvals, 2 x M20 entries, painted LM25, includes infrared carbon dioxide sensor cartridge 0 to 5.0% v/v, includes nylon weather protection
XCD Gas Detector, 4 to 20 mA output, ATEX/IECEx/Asian approvals, 2 x M20 entries, painted LM25, includes infrared propane sensor cartridge 0 to 100%LEL, user selectable FSD between 20% and 100%LEL (10%LEL resolution), includes nylon weather protection
XCD Gas Detector, 4 to 20 mA output, ATEX/IECEx/Asian approvals, 2 x M20 entries, painted LM25, includes infrared methane sensor cartridge 0 to 100%LEL, user selectable FSD between 20% and 100%LEL (10%LEL resolution), includes nylon weather protection
XCD Gas Detector, 4 to 20 mA output, ATEX/IECEx/Asian approvals, 2 x M20 entries, painted LM25, includes hydrogen sulfide EC sensor cartridge 0 to 50ppm, user selectable FSD between 10 and 100ppm (1 ppm resolution), includes nylon weather protection
XCD Gas Detector, 4 to 20 mA output, ATEX/IECEx/Asian approvals, 2 x M20 entries, painted LM25, includes oxygen EC sensor cartridge 0 to 25% v/v, includes nylon weather protection
XCD Gas Detector, 4 to 20 mA output, ATEX/IECEx/Asian approvals, 2 x M20 entries, painted LM25, includes nitrogen dioxide EC sensor cartridge 0 to 10ppm, user selectable FSD between 10 and 50ppm (5 ppm resolution), includes nylon weather protection
XCD Gas Detector, 4 to 20 mA output, ATEX/IECEx/Asian approvals, 2 x M20 entries, painted LM25, includes hydrogen EC sensor cartridge 0 to 1000ppm, includes nylon weather protection

Key Features

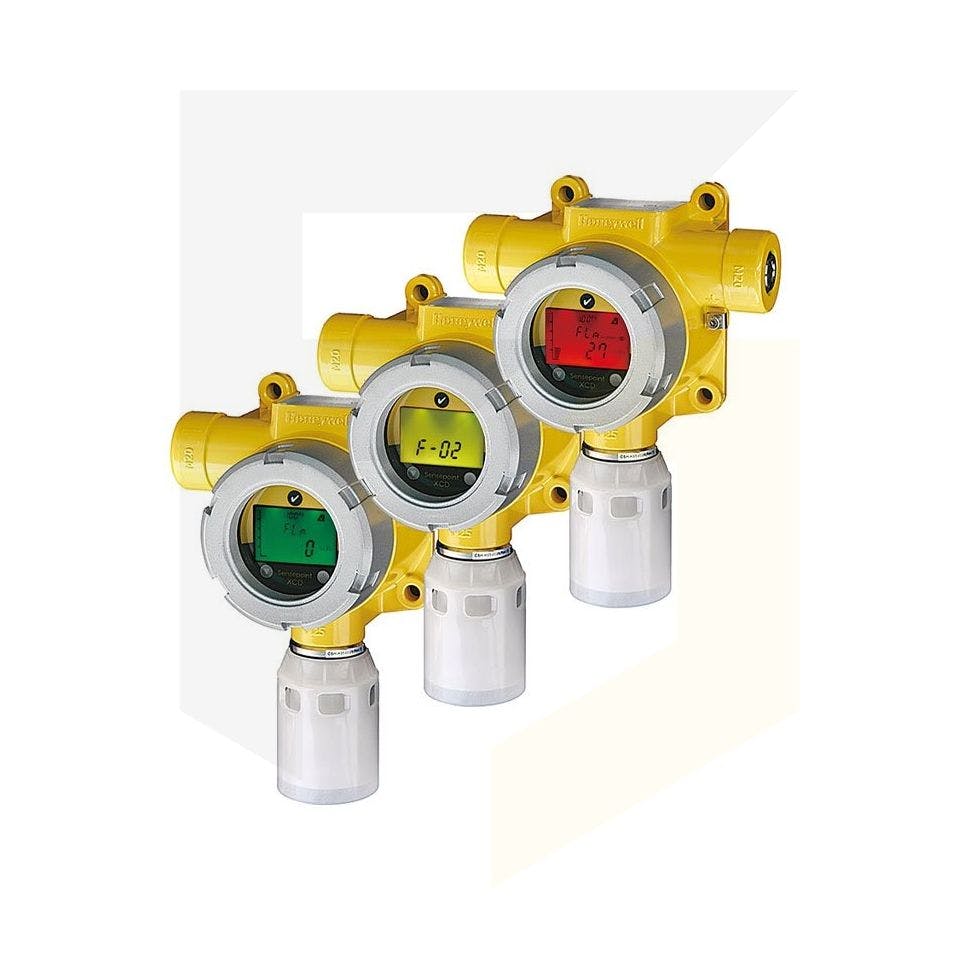

Status of unit clear with a tri-colour backlit LCD (green, yellow and red)
Integral mounting play allows for surface mounting or to a horizontal or vertical pipe (optional bracket required)
Optional accessories available to enhance the use of the Sensepoint XCD
Easy to install with removeable plug/socket and plug-in display module
Uses long life plug-in sensors
Poison-resistant flammable sensors
Poison-immune infrared Hydrocarbon sensors
Patented Surecell toxic sensors
P66 rated in accordance with EN60529:1992

Sensors

See datasheet for full sensor information

Weight

Approx. 4.4lbs

Certified Temperature Range

-40ºF to +149ºF (-40ºC to +65ºC)

Input Voltage Range

12 to 32VDC (24VDC nominal)

Max. Power Consumption

• Maximum power consumption is dependent on the type of gas sensor being used
• Electrochemical cells = 3.7W, IR = 3.7W and catalytic = 4.9W
• Maximum inrush current = 800mA at 24VDC

Current Output Relays

• Sink or Source
• 3 x 5A@250VAC
• Selectable normally open or normally closed (switch) and energized/de-energised (programmable)
• Alarm relays default normally open/de-energized
• Fault relay default normally open/energized

Communication

RS485, MODBUS RTU

Mounting

• Integral mounting plate with 4 x mounting holes suitable for M8 bolts
• Optional pipe mounting kit for horizontal or vertical pipe Ø1.5 to 3″ (2″ nominal)

Cable Entries

• ULcUL versions: 2 x ¾”NPT conduit entries.
• Suitable blanking plug supplied for use if only 1 entry used
• Seal to maintain IP rating; ATEX/IECEx versions: 2 x M20 cable entries

Approvals

• US, Latin America, Canada UL/c-UL – Class I, Division 1, Groups B, C and D, Class I, Division 2, Groups B, C & D, Class II, Division 1, Groups E, F & G, Class II, Division 2, Groups F & G. -40°C to +65°C
• European ATEX Ex II 2 GD Ex d IIC Gb T6 (Ta -40ºC to +65ºC) Ex tb IIIC T85°C Db IP66
• International IEC Ex d IIC Gb T6 (Ta -40ºC to +65ºC) Ex tb IIIC T85°C Db IP66
• EMC – CE: EN50270:2006 EN6100-6-4:2007
• Performance – UL508; CSA 22.2 No. 152 (flammable gasses, excludes infrared sensors); ATEX, IEC/EN60079-29-1:2007, EN45544, EN50104, EN50271; China: PA Pattern Measurement (for transmitter and toxic gas sensors) “CCCF” Shenyang for Flammable (fire dept approval)
