Sensepoint XCD Stainless Steel

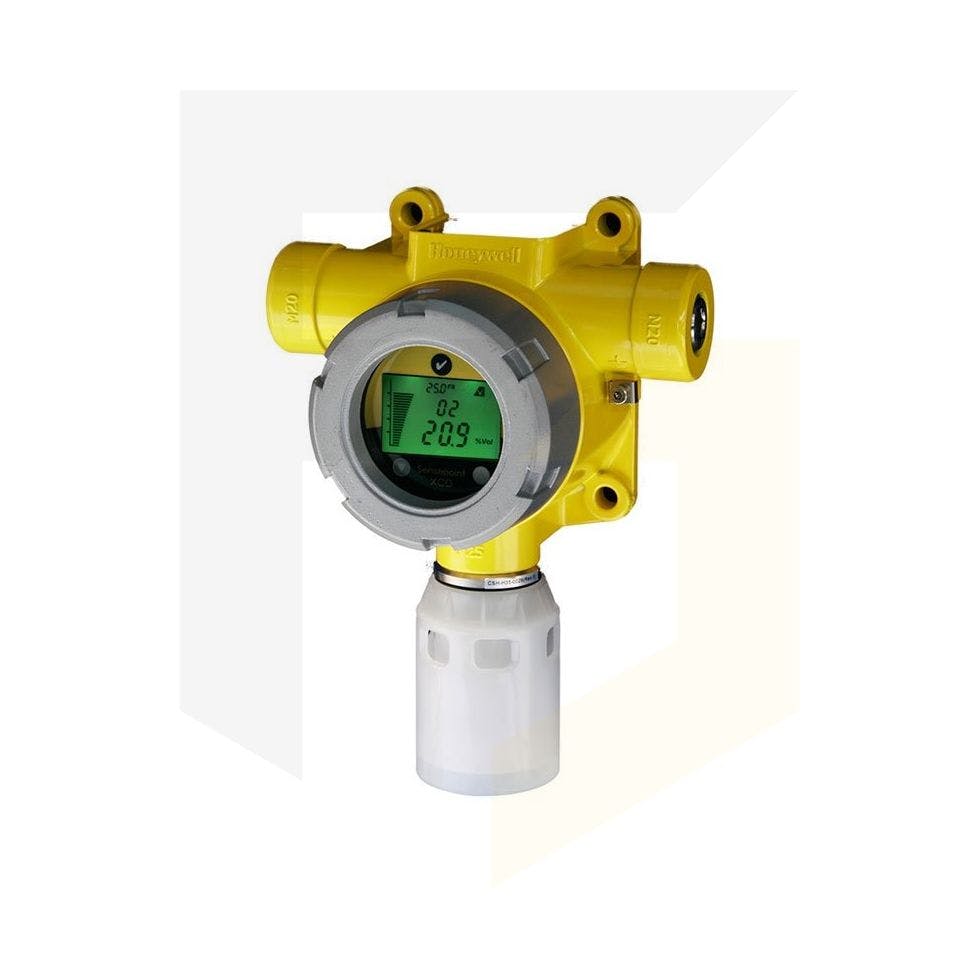

The Sensepoint XCD Stainless Steel fixed gas detection system from Honeywell is suitable for monitoring flammable, toxic and oxygen gas hazards in potentially explosive atmospheres. This device can be used indoors and outdoors giving users flexibility. The LCD and magnet switches can be used to alter sensor operations without the need to open the unit.

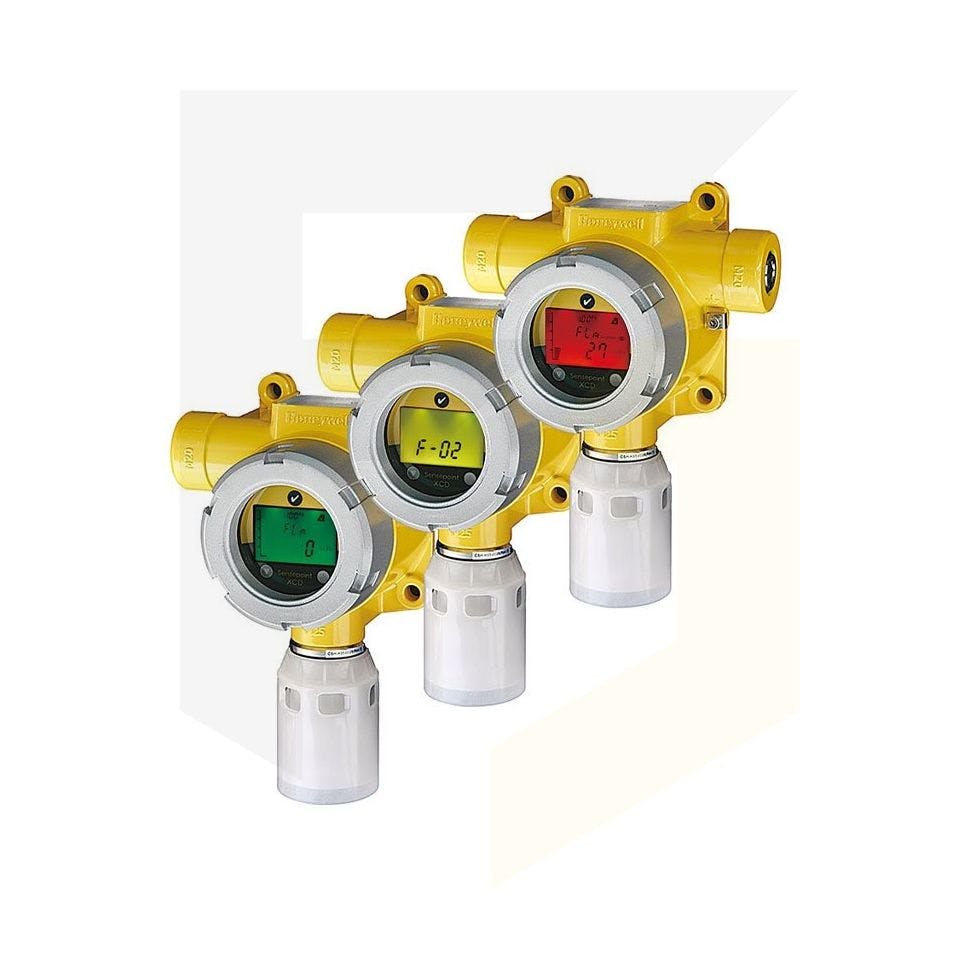

The tri colour backlit display mechanism gives users immediate indication of the status of the device at a glance.
The device can be surface-mounted with an integral mounting plate or to a horizontal or vertical pipe (optional bracket required for this). The device comes with a weatherproof cap allowing it to be used in the harshest of conditions.
Suitable applications of this system includes power plants, waste water facilities, onshore oil and gas terminals, industrial manufacturing facilities, utilities, food and beverage production, refineries and chemical plants, production platforms and exploration and drilling. Optional accessories are available to enhance the use of the Sensepoint XCD Stainless Steel. Contact us for more information.
There are 3 different types of transmitters that can be used with the XCD family of devices including the mV, EC and oxygen. A transmitter can automatically recognise any sensor and it plugs into the bottom of the transmitter configuring itself.

Key Features

Aluminium configuration also available
Easy to install with removeable plug/socket and plug-in display module
Uses long life plug-in sensors
Poison-resistant flammable sensors
Patented Surecell toxic sensors
IP66 rated in accordance with EN60529:1992

Please see datasheet for more information

Weight

316 Stainless Steel: 11lbs

Mounting

• Integral mounting plate with 4 x mounting holes suitable for M8 bolts
• Optional pipe mounting kit for horizontal or vertical pipe Ø1.5 to 3″ (2″ nominal)

Cable entries

• ULcUL versions: 2 x ¾”NPT conduit entries.
• Suitable blanking plug supplied for use if only 1 entry used
• Seal to maintain IP rating; ATEX/IECEx versions: 2 x M20 cable entries

Material

• 316 stainless steel
• Sensor: 316 stainless steel

Sensors

See datasheet for full sensor information

Certified Temperature Range

-40ºF to +149ºF (-40ºC to +65ºC)

Input Voltage Range

12 to 32VDC (24VDC nominal)

Max. Power Consumption

• Maximum power consumption is dependent on the type of gas sensor being used.
• Electrochemical cells = 3.7W, IR = 3.7W and catalytic = 4.9W.
• Maximum inrush current = 800mA at 24VDC

Current Output Relays

• Sink or source 3 x 5A@250VAC
• Selectable normally open or normally closed (switch) and energized/de-energised (programmable)
• Alarm relays default normally open/de-energized
• Fault relay default normally open/energized

Communication

RS485, MODBUS RTU

Approvals

• US, Latin America, Canada UL/c-UL – Class I, Division 1, Groups B, C and D, Class I, Division 2, Groups B, C & D, Class II, Division 1, Groups E, F & G, Class II, Division 2, Groups F & G. -40°C to +65°C
• European ATEX Ex II 2 GD Ex d IIC Gb T6 (Ta -40ºC to +65ºC) Ex tb IIIC T85°C Db IP66
• International IEC Ex d IIC Gb T6 (Ta -40ºC to +65ºC) Ex tb IIIC T85°C Db IP66
• EMC CE: EN50270:2006 EN6100-6-4:2007
• Performance UL508; CSA 22.2 No. 152 (flammable gasses, excludes infrared sensors); ATEX, IEC/EN60079-29-1:2007, EN45544, EN50104, EN50271; China: PA Pattern
• Measurement (for transmitter and toxic gas sensors) “CCCF” Shenyang for Flammable (fire dept approval)
