ToxiRAE Pro (PGM-1820) Gas Detector Non-Wireless

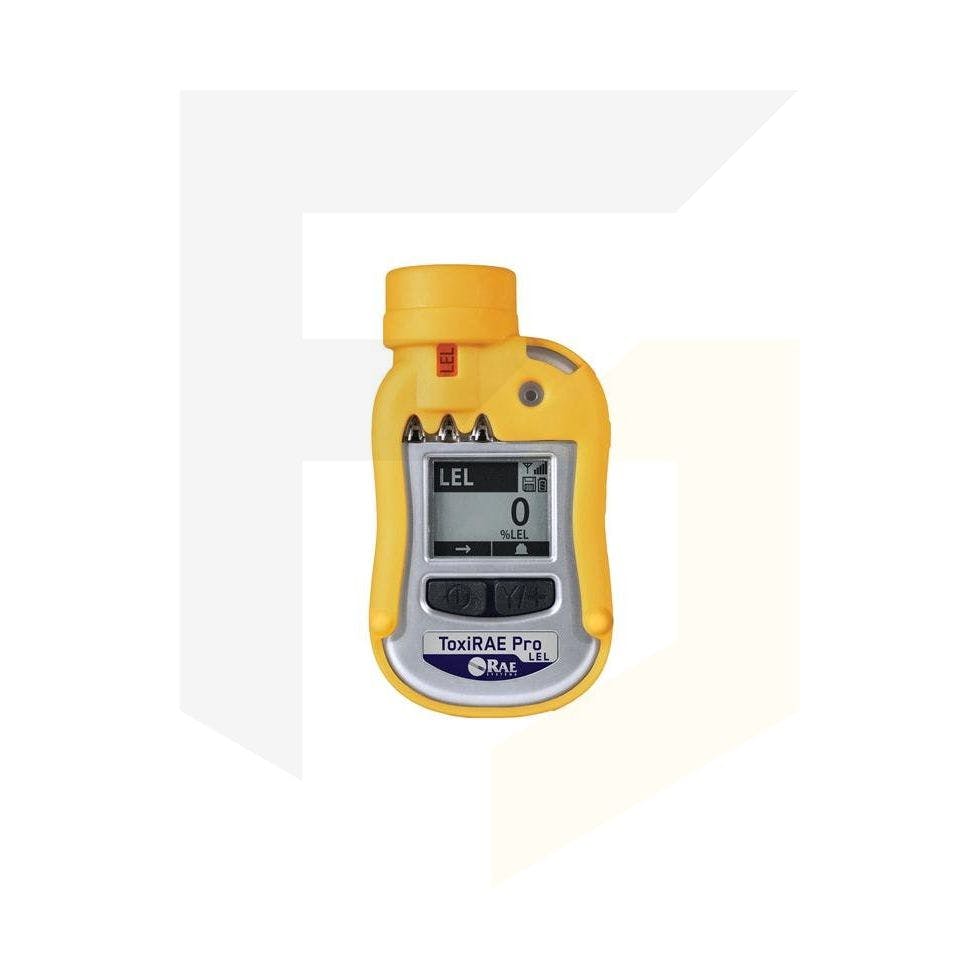

ToxiRAE Pro LEL (PGM-1820) Gas Detector Datalogging / Non-Wireless
The ToxiRAE Pro LEL is a reliable, combustible non-wireless gas monitor.  It’s ideal for applications and industries such as construction, foundries, oil and gas, pharmaceutical, steel mills, utilities, waste and wastewater, welding and hot work.
It has the ability to quickly and accurately monitor combustibles in concentrations from 0 to 100% of the lower explosive limit (LEL).  The ToxiRAE Pro LEL has an extensive on board gas library of 55 built-in LEL correction factors which can be programmed to automatically read %LEL of a specified compound.
You will be able to view readings such as gas concentrations, battery status, data logging on/off, wireless on/off and reception quality – STEL, TWA and peak values from the large display.
It’s important to note that non-wireless models cannot be upgraded to wireless.

A button press or alarm will activate the white LED backlighting on the graphical LCD screen
Continuous datalogging capacity (three-months at 1 minute intervals) with user-configurable datalogging intervals (from 1 to 3600 seconds)
Sensors, filter and Li-ion battery are replaceable and the unit is easily maintainable
Operation and programming are done with use of 2-buttons
Fully automatic bump testing and calibration with the AutoRAE 2 – available from Frontline Safety

Range
0 to 100%
Size

4.6” x 2.4” x 1.2” (118 x 60 x 30 mm)

Weight
7.76 oz (220g)
Detectable Gases
Combustible gases and vapours from paints, coatings, fuels, degreasers, adhesives, solvents, resins, etchers, inks, pesticides, herbicides, etc. using 55 on-board correction factors

Operating Period

>12 hours (normal operation, non-wireless)
Recharge time <4 hours="" through="" charging="" cradle="" (rechargeable="" li-ion="" battery)="">
Sampling
Diffusion
Humidity
0-95% RH non-condensing
Temperature
-4° to 131°F (-20° to 55°C)
IP Rating
IP-65 for dust & water ingress protection
Alarms

• Audible 95dB @ 30cm
• Vibration
• Visible Alarm (flashing bright LEDs)
• On-screen indication of alarm conditions

Hazardous Location Approvals

• CSA – Class I, Division 1, Groups A, B, C and D, T-code T4, Class I, Zone 0 A/Exia IIC T4
• ATEX – CE II 1G, Ex ia IIC Ga T4
• IECEx – Ex ia IIC Ga T4
• China Ex: Ex ia IIC T4

CE Compliance (European Conformity)
EMC directive 2004/108/EC, R&TTE directive: 1999/5/EC, ATEX directive 94/9/EC

Performance Test Compliance
C22.2 No 152, ANSI/ISA-12.13.01

Warranty
2 years on non-consumable components; 1 year on sensor, battery and other consumable parts

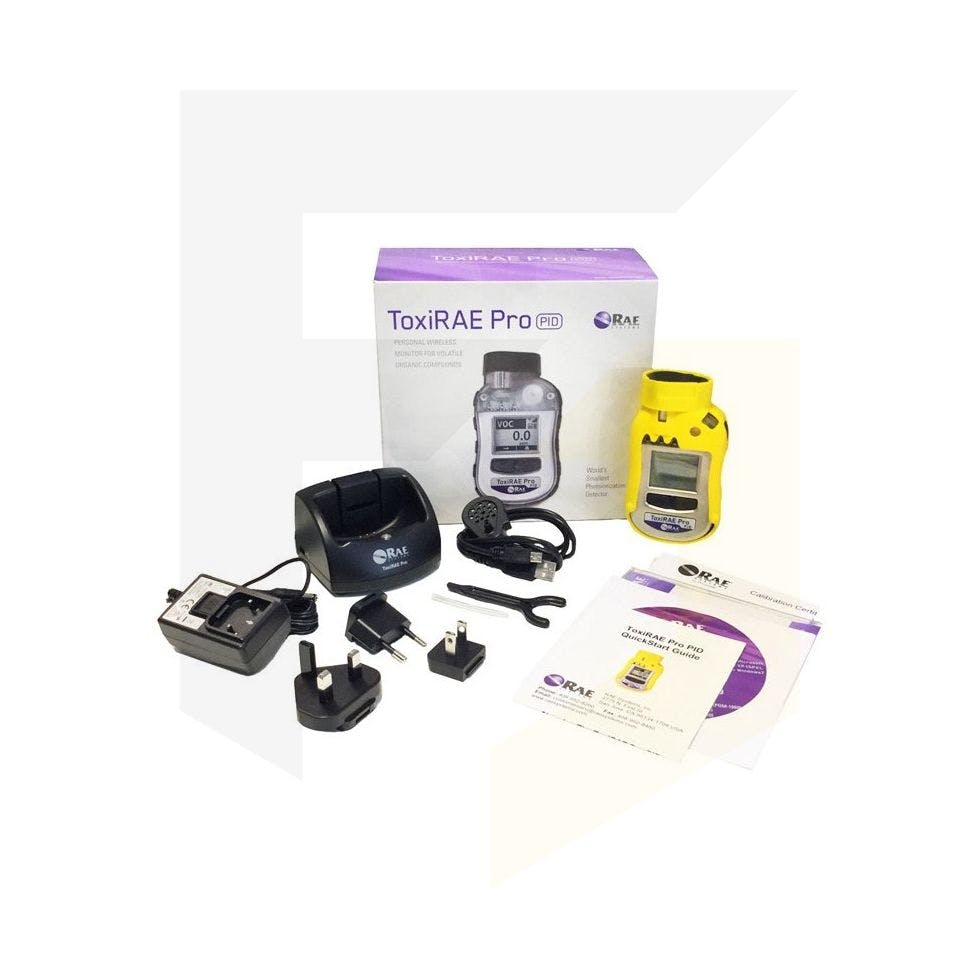

What’s Included

• ToxiRAE Pro Monitor with sensor as specified, alligator clip, protective rubber boot, rechargeable battery installed
• Charging and PC communication cradle
• PC Communication Cable
• AC adapter (100 to 240 V, 50/60 Hz AC to 12 V DC)
• Calibration adapters
• Quick Start Guide
• CD with documentation
• ProRAE Studio II software for PC-based instrument configuration and data management
• Calibration card, quality certificate and warranty/registration card
