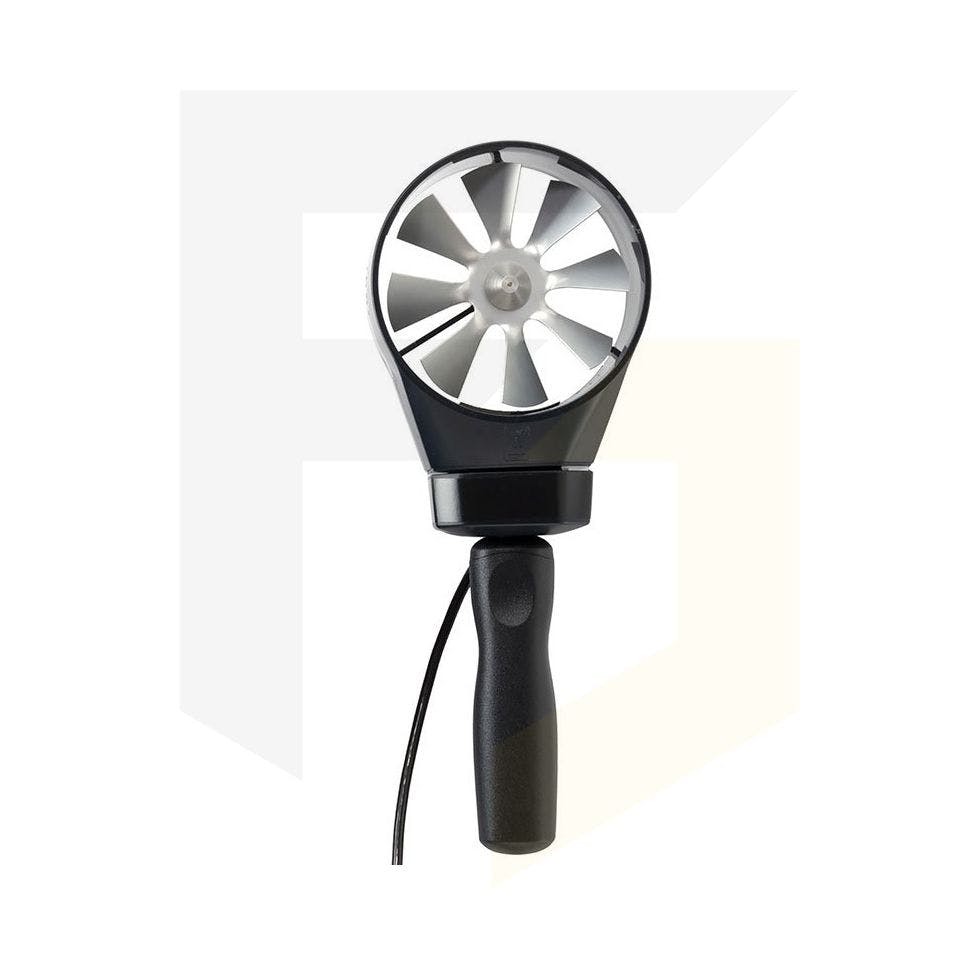

TSI Rotating Vane Probe (100 mm) for Velocity / Temperature

TSI Rotating Vane Probe (100 mm) for Velocity / Temperature
The rotating vane probe from TSI is suitable for monitoring the velocity and temperature of air.
The probe is an accessory of the TSI Q-Track IAQ Monitor. This is a handheld device which is suitable for monitoring the quality of air.
When used in conjunction with the Q- Track monitor it can assist in applications including IAQ investigations, industrial hygiene surveys, baseline trending and screening, building commissioning and tracking down emissions to their source (point source location).

Key Features

Plug in capability, probe able to be changed in field
The probe stores all test data (calibration data) within itself
Has the capability to be calibrated on site
Monitors velocity and temperature
Other probes are available from Frontline Safety

Range

• 50 to 6,000 ft/min (0.25 to 30 m/s)
• 32 to 140°F (0 to 60°C)

Accuracy

•  ±1% of reading ±4 ft/min (±0.02 m/s)
• ±2.0°F (±1.0°C)

Resolution

• 1 ft/min (0.01 m/s)
• 0.1°F (0.1°C)

Probe Dimensions

• Diameter 4 in. (100mm)

Accessories

• 11 x 9 in. (235 x 285mm) rectangular and 7 in. (180mm dia.) circular air cones
• Telescopic, articulated extension 1.3 to 3.6 ft. (0,4 to 1,1m)
