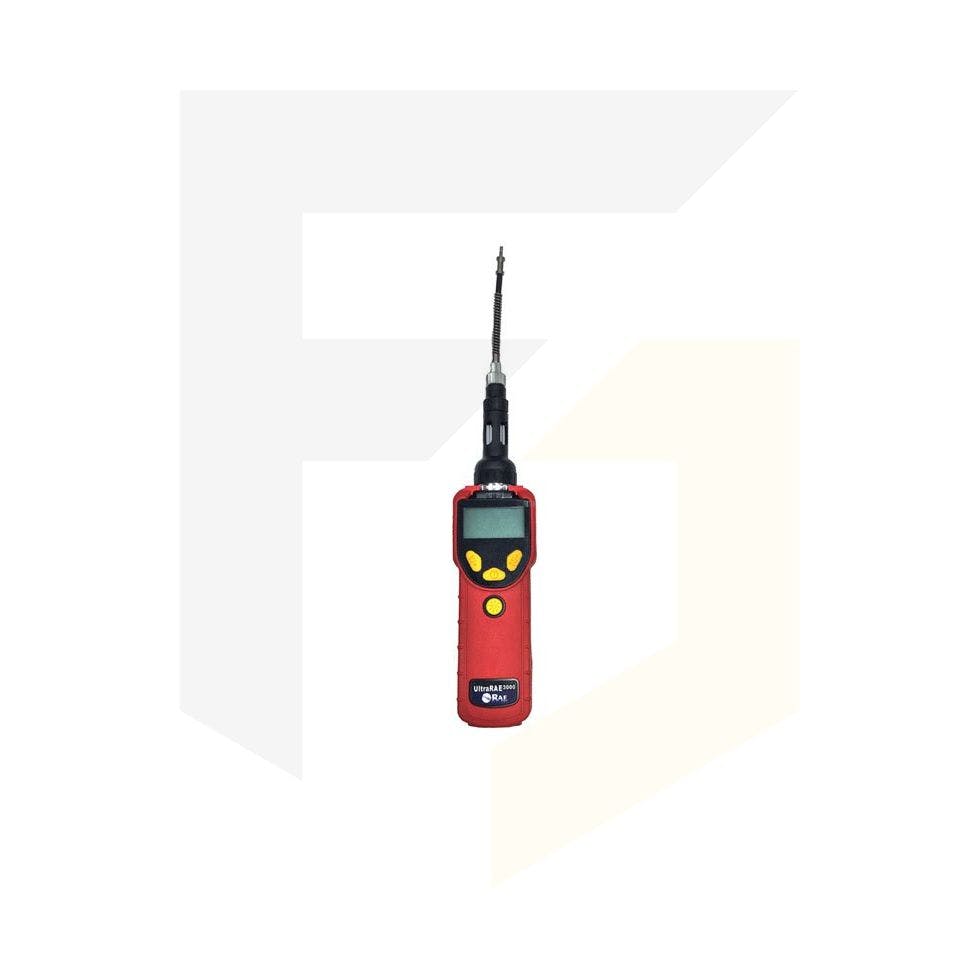

UltraRAE 3000 (Model PGM-7360) Monitor & Accessories Kit

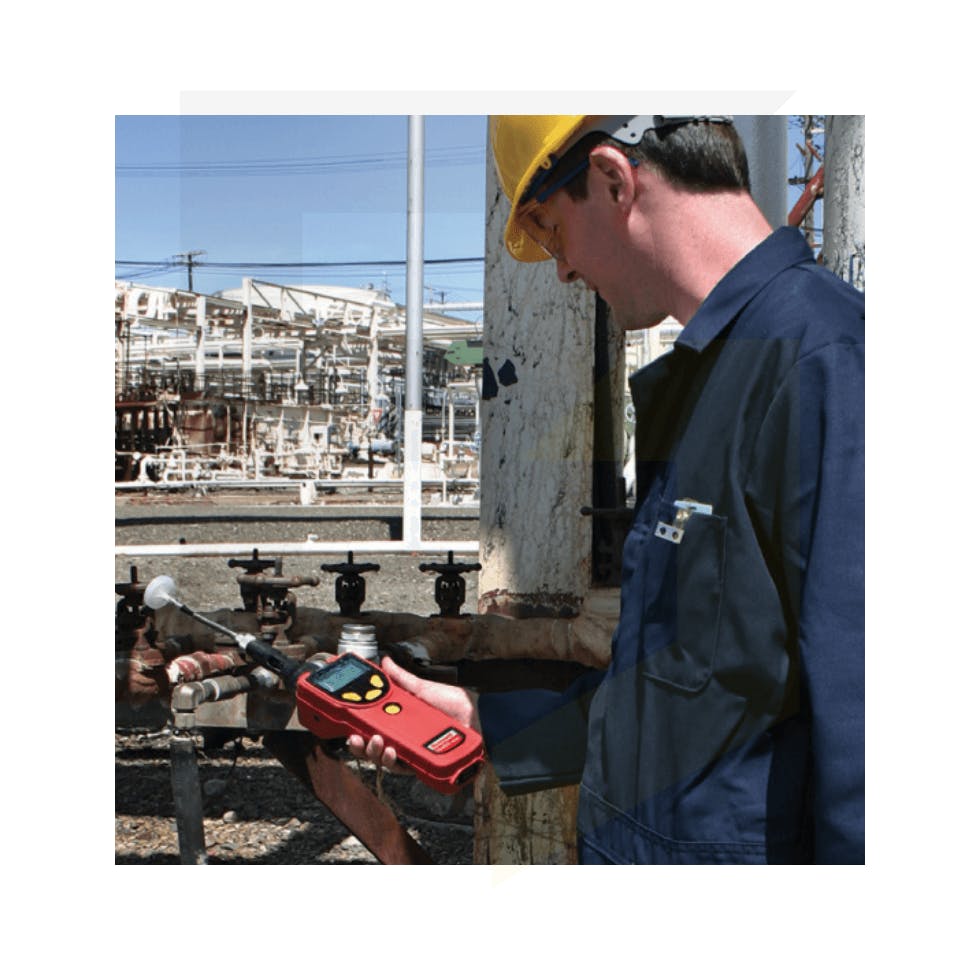

The UltraRAE 3000 from RAE Systems is one of the most advanced handheld VOC monitors available on the market and is ideal for applications including confined space entry (pre-screening during refinery and plant maintenance), hazardous material response, marine spill response, refinery down-stream monitoring and also plant overhauls.
It has a proven Photoionization sensor has an extended range in VOC mode and also has a benzene-specific mode (with a range of 50 ppb to 200ppm). Highly specific readings can be done by combining a 9.8 eV lamp and the RAE-Sep benzene tubes which are also available from Frontline Safety (click here). This means there is lower risk of false alarms through advanced speciation methods.
The UltraRAE 3000 has an integrated RAE Systems Correction Factors list which features more than 200 compounds.It also has real-time wireless with built-in Bluetooth and optional RAELink3 portable modem. You can easily and quickly obtain VOC readings anywhere in your facility with the UltraRAE 3000.
The UltraRAE 3000 VOC detector is easy to use and has a low cost of ownership. The large graphical display will show you VOC’s as ppm by volume, high and low values, STEL and TWA, battery and shutdown voltage and also date, time and temperature. Maintenance is simple as there is easy access to the lamp, sensor and battery without the use of tools.Other features include a datalogging capability (standard 6 months at one-minute intervals) and also a new sampling probe design which provides instant tube breakthrough visibility.
What’s Included?
Specification
Sensor
Photoionization sensor with standard 9.8 eV or 11.7 eV lamp
Range
VOCs – 0 to 99.99 ppm
100 to 999.9 ppm
1000 to 9999 ppm
Benzene – 0 to 200 ppm
Butadiene – 0 to 200 ppm
Resolution
VOCs – 0.05 ppm
0.1 ppm
1 ppm
Benzene – 0.05 ppm
Butadiene – 0.05 ppm
Response Time (T90)
< 3 s (for VOCs)
< 60 s (for Benzene and Butadiene)
Dimensions
(W x H x D)
10” x 3.0” x 2.5”
(25.5 x 7.6 x 6.4 cm)
Weight
26 oz (738g)
Temperature
-4° to 122°F (-20° to 50°C)
Humidity
0-95% RH (non-condensing)
Battery
– Alkaline battery adapter
– Rechargeable external field-replaceable lithium-ion battery pack if specified
Operating Hours
16 hours of operation
Alarms
IP Rating
IP65 unit running
Calibration
Two-point or three-point calibration for zero and span
Calibration memory for 8 calibration gases, alarm limits, span values and calibration dates
Sampling Pump
Internal, integrated flow rate at 400 cc/mn
Sample from 100’ (30m) horizontally and vertically
Low Flow Alarm
Auto shut-off pump at low-flow condition
Communication
Download data and upload instrument set-up from PC through charging cradle
Wireless data transmission through built-in Bluetooth
Hazardous Area Approval
US and Canada: UL, cUL, Classified as Intrinsically Safe for use in Class I, Division 1 Groups A, B, C, D
Europe: ATEX Ex II 2G EEx ia IIC T4
IECEx: CSA 10.0005 Ex ia IIC/IIB GbT4
Warranty
3 years for 10.6 ev lamp, 1 year for 9.8 eV lamp, pump, battery, sensor and instrument
