Dual-detection detector for benzene or over 200 VOCs. Use RAE-SEP benzene tubes when the unit is in benzene mode to gain highly specific readings. Suitable for applications including entry pre-screening during refinery and plant maintenance to hazardous material response, marine spill, response and refinery down-stream monitoring.

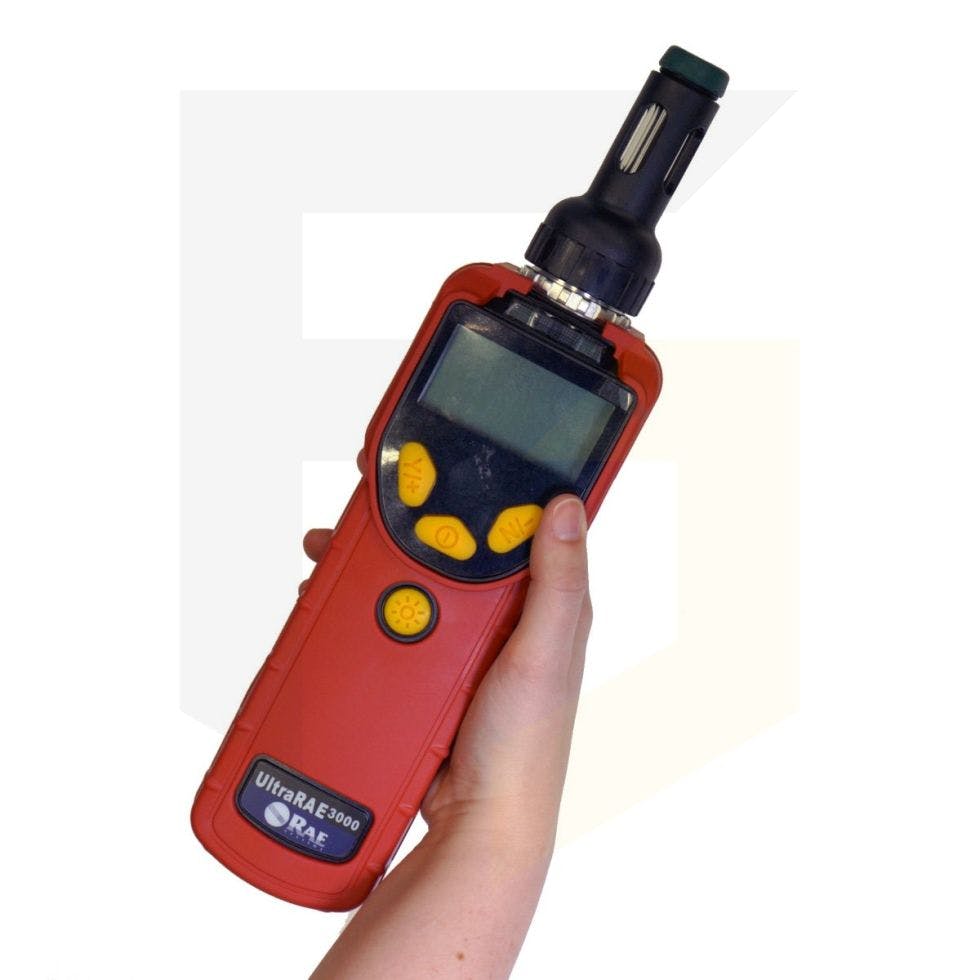

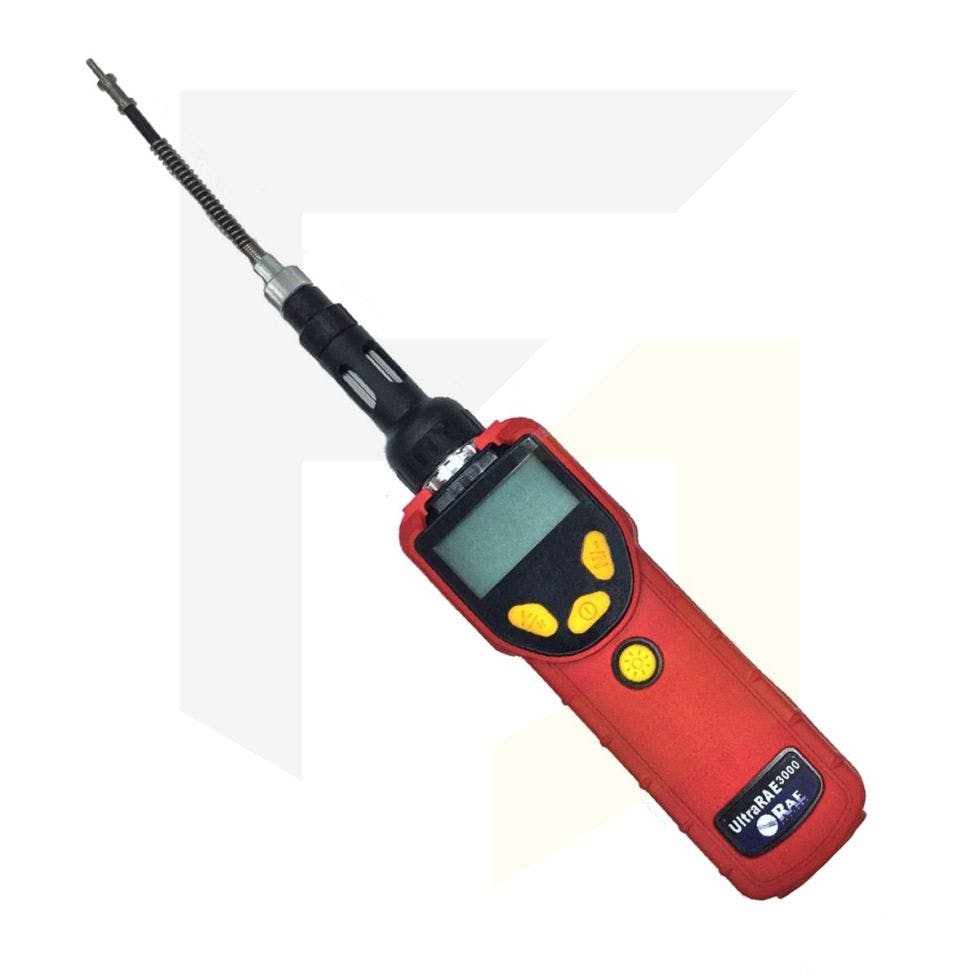

UltraRAE 3000+ (PGM-7360) Photoionisation (PID) Detector with 9.8 eV lamp Non-WirelessThe UltraRAE 3000 from RAE Systems is a cutting-edge handheld VOC monitor designed to provide accurate and reliable readings in critical applications. Whether you’re ensuring safety in confined spaces, conducting refinery and plant maintenance, responding to hazardous material spills, or performing marine and plant overhauls, the UltraRAE 3000 delivers the precision and functionality you need.
The UltraRAE 3000+ from RAE Systems is a photoionisation (PID) detector, suitable for the detection of hazardous and volatile organic compounds (VOC’s) The PID is capable of detecting more than 200 VOCs, but also features a benzene-specific mode and is Non-Wireless.
This makes the UltraRAE 3000 ideal for pre-screening applications in refinery and plant maintenance, hazardous material response, marine spill response and refinery downstream monitoring. The detector has an extended range of 0.05 to 10,000ppm in VOC mode and 50 ppb to 200ppm in its benzene-specific mode.
The UltraRAE 3000 comes with a 9.8 eV lamp as standard, but other lamps are available. The sensor responds extremely quickly and can produce highly specific readings when using RAE-SEP benzene tubes.
Save money, buy the UltraRAE 3000+ (PGM-7360) Photoionisation (PID) Detector with 9.8 eV lamp with the accessories kit
The UltraRAE 3000 combines state-of-the-art technology, ease of use, and low ownership costs, making it the ideal choice for your VOC monitoring needs. Available from Frontline Safety with additional accessories like RAE-Sep benzene tubes—your one-stop solution for reliable gas detection.
Key Features
Easy to read, graphical display
Multi-language support
Maintainable with easy access to sensors, lamp and battery without tools
Specification method reduces risk of false alarms
Alarm system – flashing light, 95dB buzzer
IP 65 rated (unit running)
Datalogging – 6 months at one-minute interval
What’s Included?
• UltraRAE 3000+ Monitor, Model PGM-7360 with soft leather carrying case
• Datalogging with ProRAE Studio II Package for Windows ® XP, Windows® Vista, or Windows® 7
• Travel Charger
• RAE UV lamp and RAE-Sep Tubes
• Flex-I-Probe
• External filter
• Red rubber boot
• Alkaline battery adapter
• Lamp-cleaning kit
• Tool kit
• Lithium-ion (Li-Ion) battery with universal AC/DC charger and international plug kit
• Operation CD-ROM
• Operation & Maintenance manual
Sensor
Photoionization sensor with standard 9.8 eV or 11.7 eV lamp
Range
VOCs – 0 to 99.99 ppm
100 to 999.9 ppm
1000 to 9999 ppm
Benzene – 0 to 200 ppm
Butadiene – 0 to 200 ppm
Resolution
VOCs – 0.05 ppm
0.1 ppm
1 ppm
Benzene – 0.05 ppm
Butadiene – 0.05 ppm
Response Time (T90)
< 3 s (for VOCs)
< 60 s (for Benzene and Butadiene)
Dimensions
(W x H x D)
10” x 3.0” x 2.5”
(25.5 x 7.6 x 6.4 cm)
Weight
26 oz (738g)
Temperature
-4° to 122°F (-20° to 50°C)
Humidity
0-95% RH (non-condensing)
Battery
– Alkaline battery adapter
– Rechargeable external field-replaceable lithium-ion battery pack if specified
Operating Hours
16 hours of operation
Alarms
IP Rating
IP65 unit running
Calibration
Two-point or three-point calibration for zero and span
Calibration memory for 8 calibration gases, alarm limits, span values and calibration dates
Sampling Pump
Internal, integrated flow rate at 400 cc/mn
Sample from 100’ (30m) horizontally and vertically
Low Flow Alarm
Auto shut-off pump at low-flow condition
Communication
Download data and upload instrument set-up from PC through charging cradle
Wireless data transmission through built-in Bluetooth
Hazardous Area Approval
US and Canada: UL, cUL, Classified as Intrinsically Safe for use in Class I, Division 1 Groups A, B, C, D
Europe: ATEX Ex II 2G EEx ia IIC T4
IECEx: CSA 10.0005 Ex ia IIC/IIB GbT4
Warranty
3 years for 10.6 ev lamp, 1 year for 9.8 eV lamp, pump, battery, sensor and instrument
