Confidently carry out work in demanding applications with the PSS 4000 self-contained breathing apparatus kit from Drager Safety.

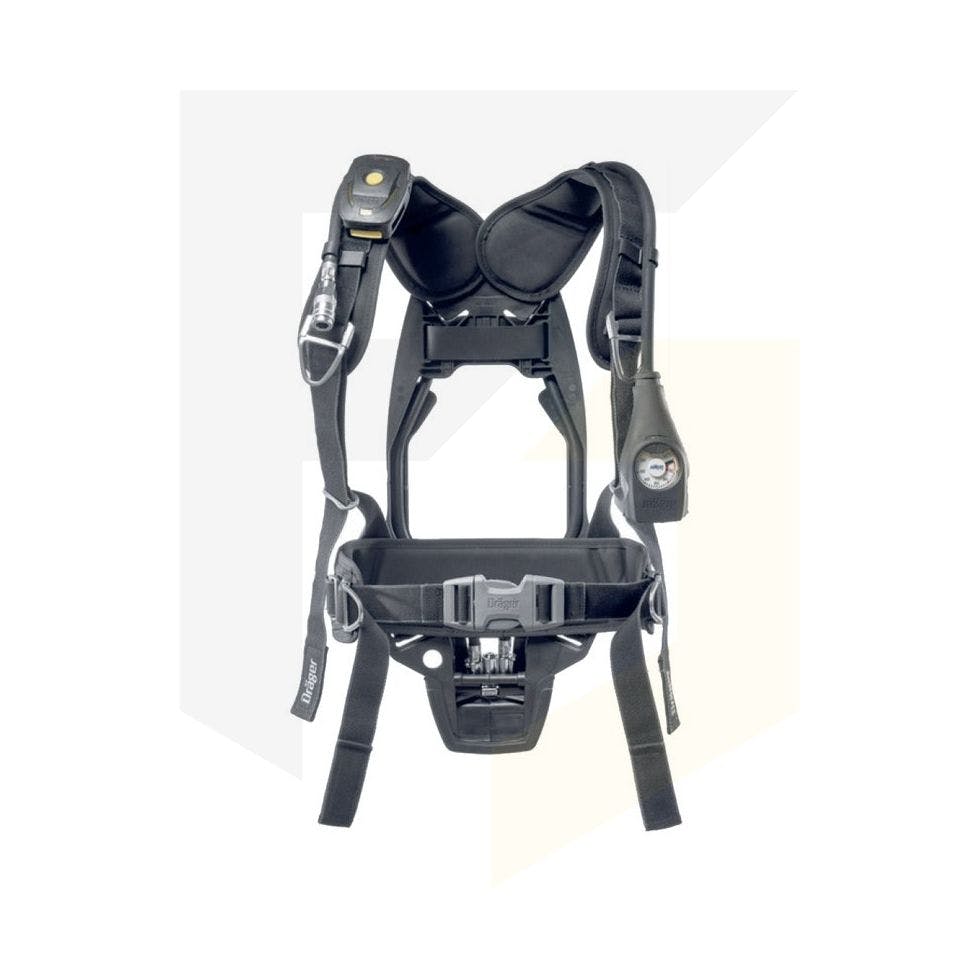

Drager PSS 4000 TCS Pneumatic Gauge – Universal Strap
Drager’s PSS 4000 self-contained breathing apparatus harness has been designed with fire fighting applications in mind and other robust applications. This particular version has a universal strap.
The harness is extremely durable with a quick-release fastener. The harness, along with the pull-forward mechanism, allows easy and quick adjustment. Your stability will be improved thanks to the design of the PSS 4000. It’s carrying frame fits in to the natural contours of the body which helps to reduce the risk of back strain, stress and fatigue.
The design of the PSS 4000 also means that the risk of snagging and potential entanglement is reduced. This is thanks to the integrated hose function in the carrying frame which houses the medium pressure air supply and the gauge hoses. If you would prefer to change which side your gauge is on then the hoses can be re-routed.
Key Features
Ultra-lightweight
Offers an optimal load distribution
Suitable for frequent use
Made of durable materials
Easy to maintain and service
Additional options are available including the compatibility with the Drager Bodyguard 1500 personal alert safety system – see the datasheet for more information
Size
590 x 290 x 160 mm
Weight
3.00 kg
Input Pressure
0 to 300 bar
Nominal 1st Stage Output pressure
7.5 bar
1st Stage Output pressure
>1000 l/min
LDV Output flow
>400 l/min
Whistle Activation Pressure
50 to 60 bar
Whistle Sound Level
>90 dBA
ADSU Main Alarm
N/a
ADSU Pre-Alarm
N/a
Approvals
